Description
Features
- 2x 100W AC/DC high end charger
- Larger 4 inch color touch screen
- State of the art touch screen software
- Charger stands for best view on screen
- Split view shows all battery data
- Integrated 200W power supply
- Charges Li-Po, Li-Fe, Li-Ion, Ni-MH, Ni-Cd, and PB batteries
- Charges 2x 1-6S batteries with up to 10A each
- Multi-language software pre-installed
- Unique charge assistant
- Updatable firmware via micro-USB connection
- Two universal balancing boards included
Overview

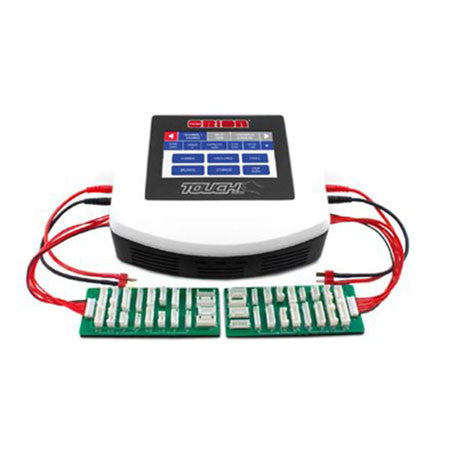

The Team Orion Advantage Touch Duo AC/DC charger is unlike any other charger on the market today. It is the first two channel, touchscreen charger ever to be released. By no means is the Advantage Touch Duo a one-trick pony, it is also packed full of innovative features and has more than enough power to get the job done for just about any RC hobbyist. Powered by an internal 200W power supply, this conveniently portable charger will charge two separate batteries simultaneously at 100W and 10A per channel. While both channels of the charger are in operation you have the option to go into split screen mode and monitor the progress of both channels at the same time. The innovative and simple to navigate charging software is easily visible on the large, 4 inch color LCD screen. There is only on touchscreen two-channel charger; the Team Orion Advantage Touch Duo.
INCLUDES:
Universal balancing board (2)
Banana to EC3 (2)
Standard AC power cord
DC power cord (XT60 / banana)
Mini USB to USB
Specifications
Type: 2-channel Touch Screen Multi-ChemistryInput: 110C of 220V AC & 11-18V DC
# Cells: 1-6S LiPo, 1-6S LiFe, 1-6S LiIon, 1-16C NiCd, 1-16C NiMH, 2- 20V Pb
Peak: Yes
Current Discharge: 0.1—5.0A (2 x 20W)
Charge Rate: 0.1—10A (2 x 100W)
Input Connector: AC cord, detachable, North American plug
Output Connector: Banana plug
Battery Type: Li-Ion/LiPo/LiFe/NiCd/NiMH/Pb
Cooling Method: Cooling Fan
LCD: Touch Screen
Discharge: Yes
Length: 6.69 in (170mm)
Width: 6.22 in (158mm)
Height: 1.77 in (45mm)
Overload Protection: Yes
