Description

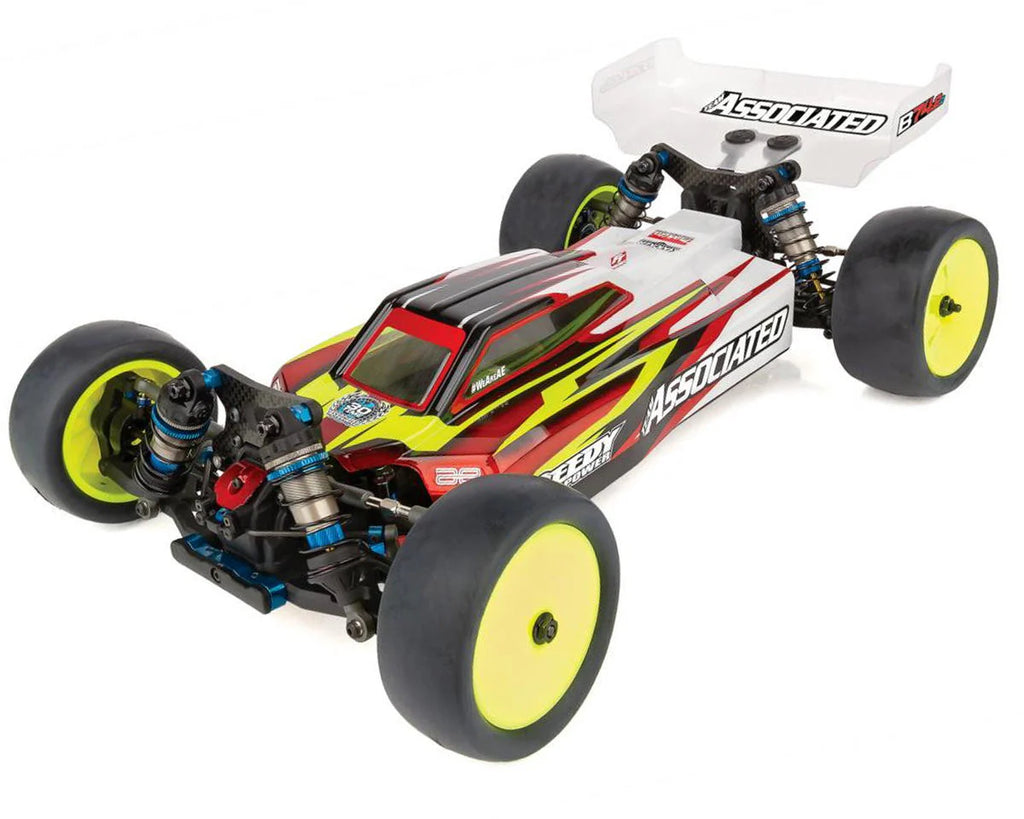

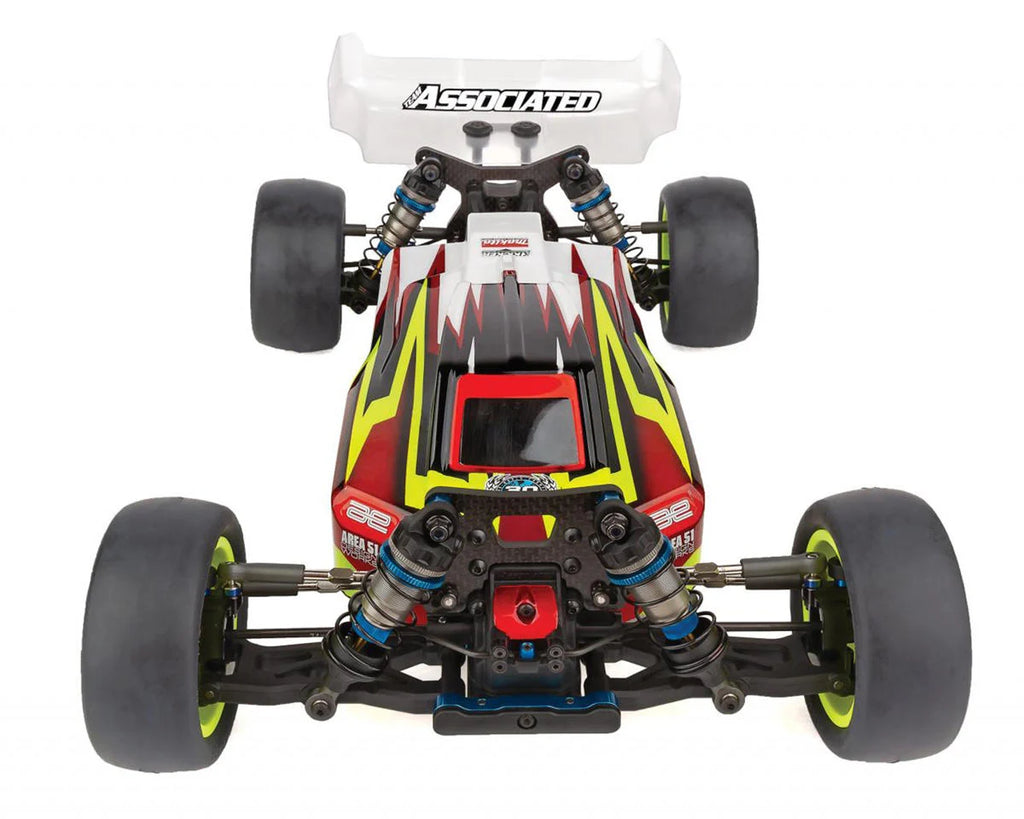

Champion-Level 1:10 Electric R/C Buggy (Dirt Version)
Based on the proven and popular IFMAR World Champion, European Champion, Australian Champion and British Champion B74 platform that has been successfully competing at the highest level worldwide! Team Associated decided to go ahead and elevate the B74 platform performance even further with the addition of Factory Team upgrades and setups to keep the RC10B74 on top of the completion! the B74.2D and B74.2D Champions Edition kits are here to rule the 1/10 scale 4WD buggy scene!
About The RC10B74.2D Champion Edition
Key Features From Its Proven Predecessor
This RC10B74.2D Champions Edition retains all the great key features from its predecessor. The B74.2D is equipped with front and rear molded gearboxes that lower the center of gravity by reducing the weight from high points of the car. Also fitted on this B74.2D are the smooth 13mm aluminum big bore shocks that offer supreme jump and bump handling performance, the gull wing front suspension arms and the LTC differential gear sets that make it easier and more predictable to drive on any track or condition!
Smooth Handling and Drive Feel
When it comes to handling and drive feel, the RC10B74.2D Champions Edition features a center differential equipped with a 72T and a 78T spur gear and 200,000 CST silicone differential fluid to go in and molded LTC differential gear sets! A +3mm aluminum steering rack is also fitted for optimized bump steer at low ride heights and larger 3.5mm turnbuckles with updated rod end style ball cups to increase durability and reduce suspension binding! To offer further weight tuning and adjustability, the RC10B6-style inserts that offer 0, +1, +2, and +3mm differential height options are also included in the B74.2D Champions Edition kit! Allowing racers to adjust the differential height which highly impacts the Center of Gravity of the buggy and affects handling!
Factory Team Upgrades and Setup Improvements
To take the RC10B74.2D Champions Edition a level higher above the competition, Team Associated Factory Team took the B74.2D to the lab, and after countless hours of testing and tuning, Factory Team determined to use the optional LTC differential gear sets that reduce binding under power for more predictable power delivery, optional molded ring and pinion gear sets and +1 steering block arms! The modified differentials resulted in improved rolling speed through turns and increased stability on landings, allowing the buggy to corner faster on high-grip tracks.
Features:
- Factory Team molded ring and pinion gear sets

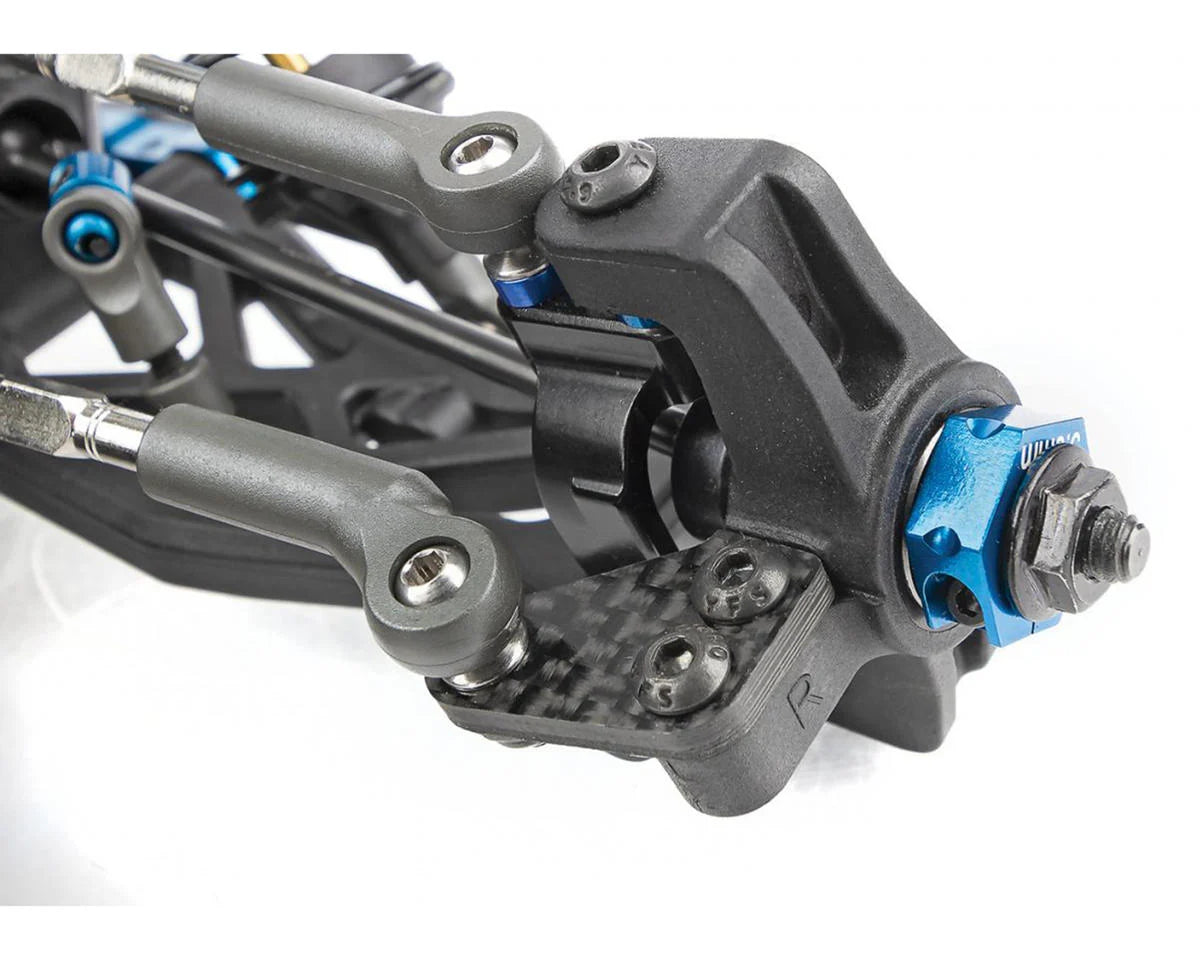

- Factory Team 12 steering block arms
- Factory Team molded LTC differential gear sets
- Factory Team Updated kit setup
- Lightweight molded gearboxes with an LCG design

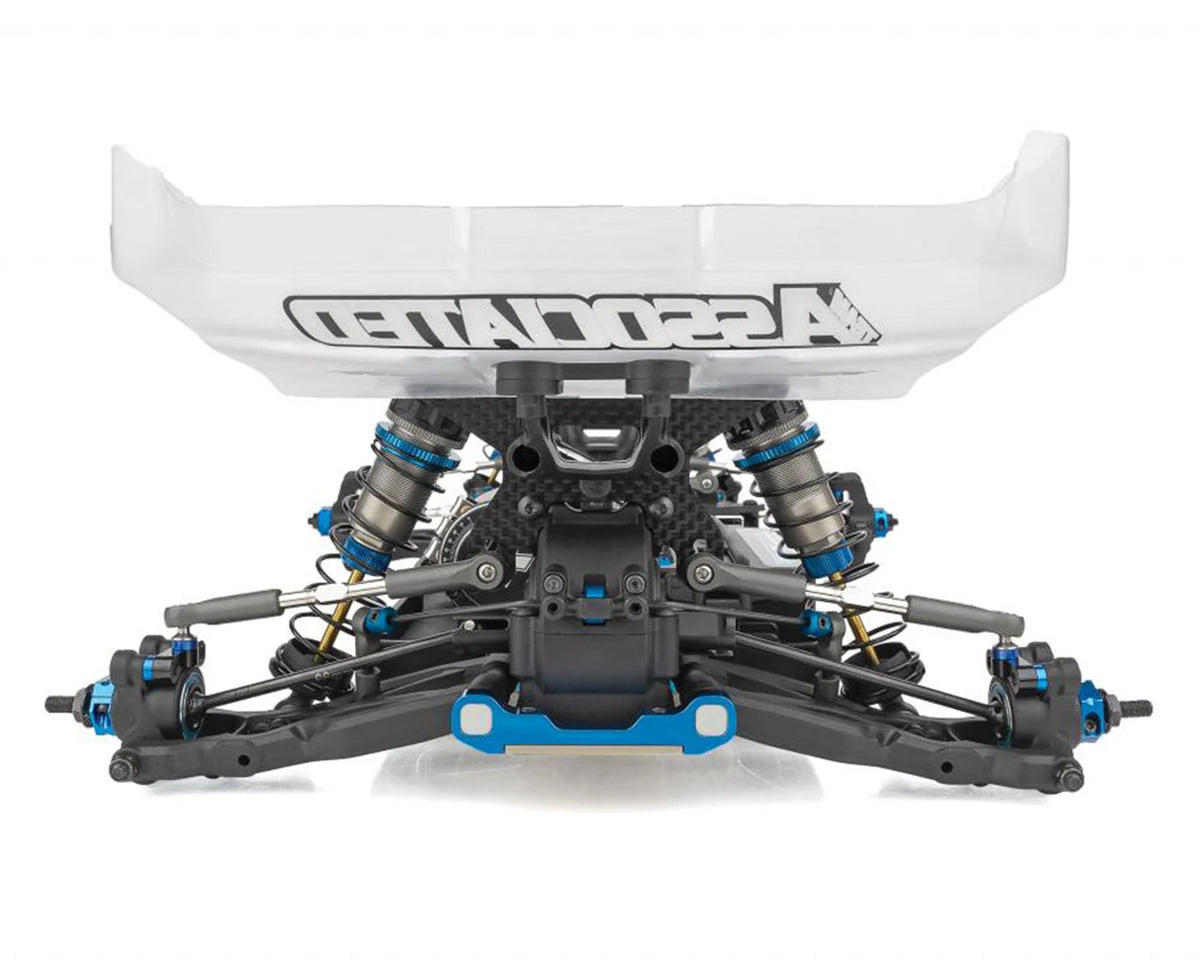

- Gull wing front suspension arms and mating shock tower

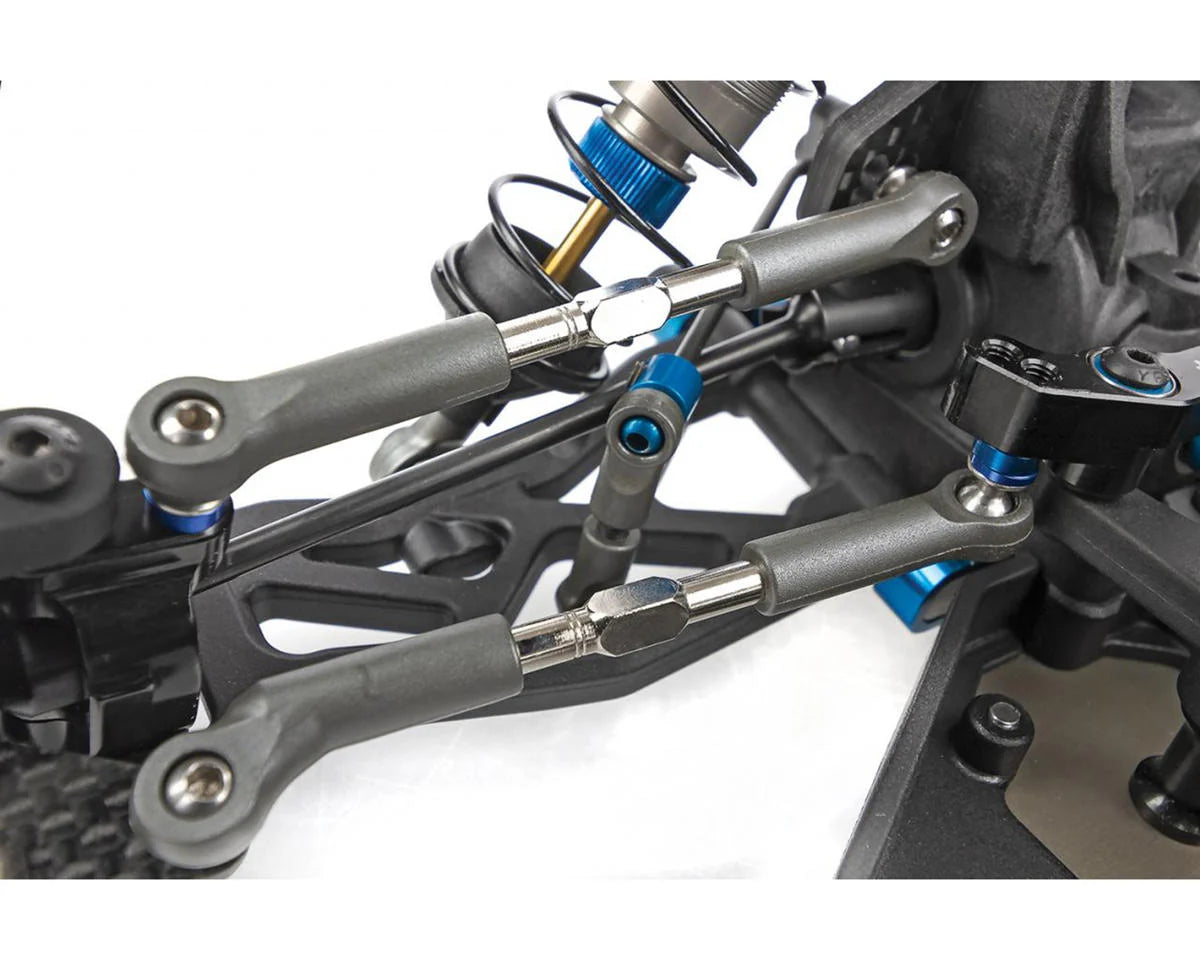

- Larger 3.5mm turnbuckles with updated rod end style ball cups
- -2mm wing mounts for use with slicks and low-profile carpet tires

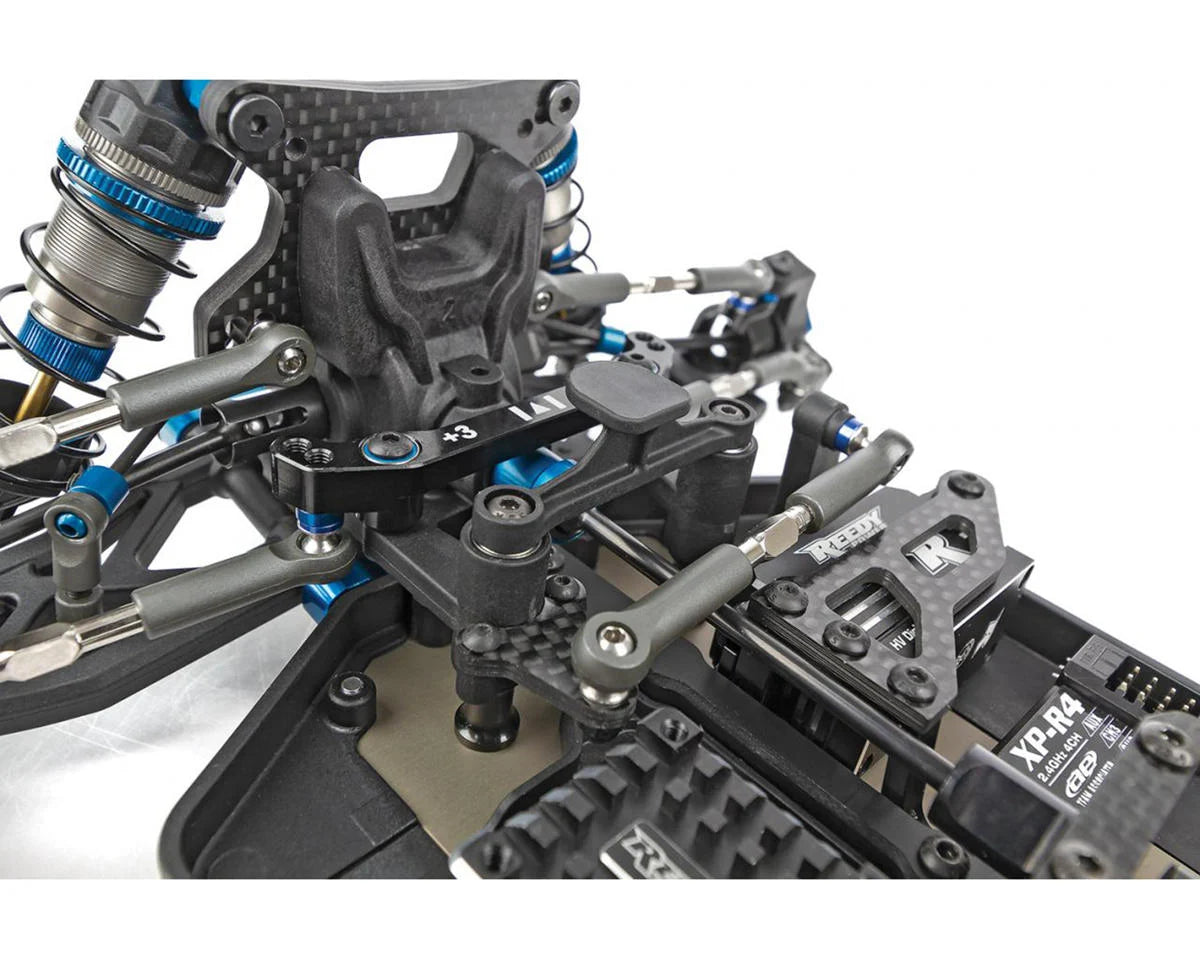

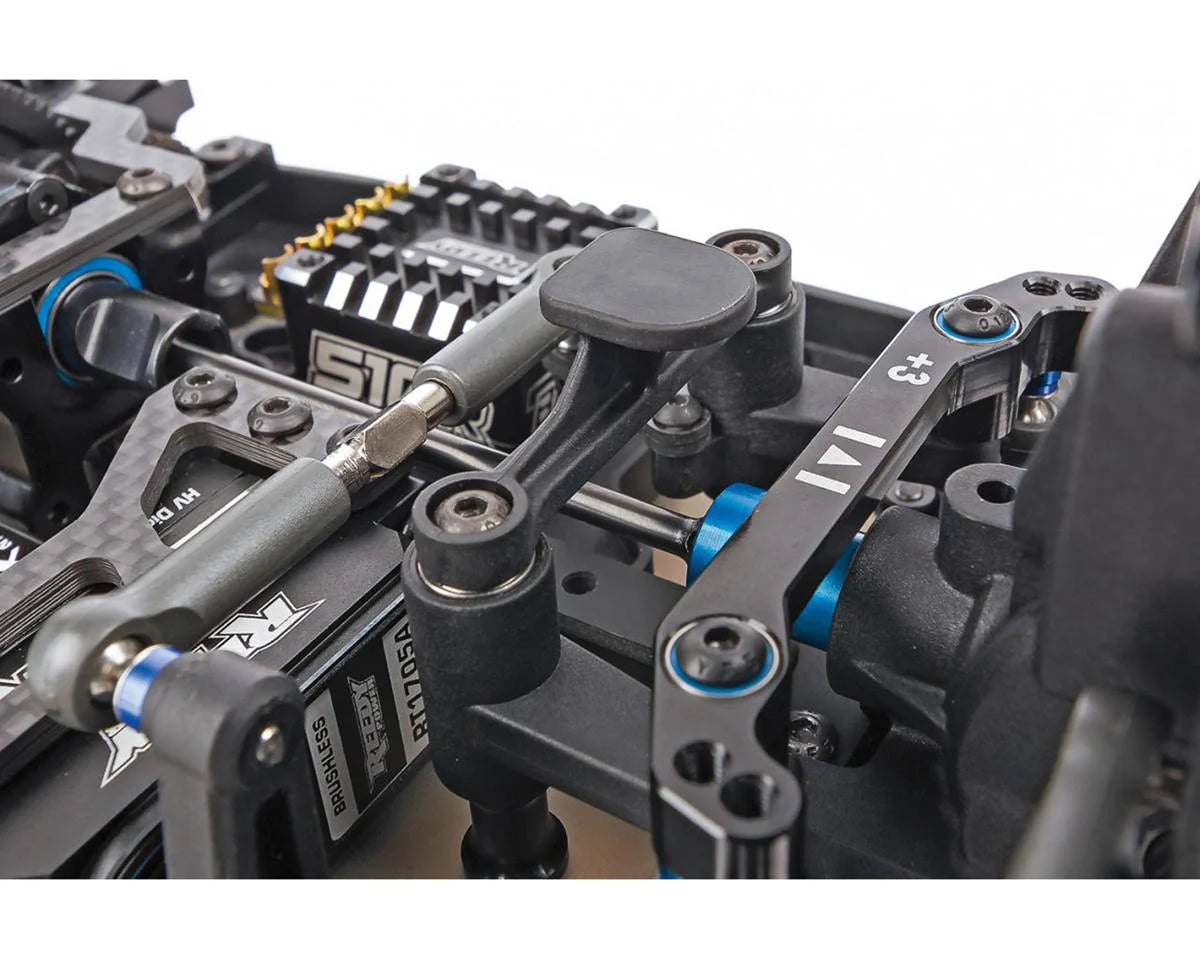

- +3mm Aluminum steering rack
- 66mm Rear CVA drive shafts and axles
Includes:
- (1) RC10B74.2D Champion Edition 1/10 4WD Buggy Kit
- (1) Manual
Needed To Complete:
- Electronic speed control
- 1:10 scale electric motor
- Steering servo
- 2-channel Transmitter/Receiver system

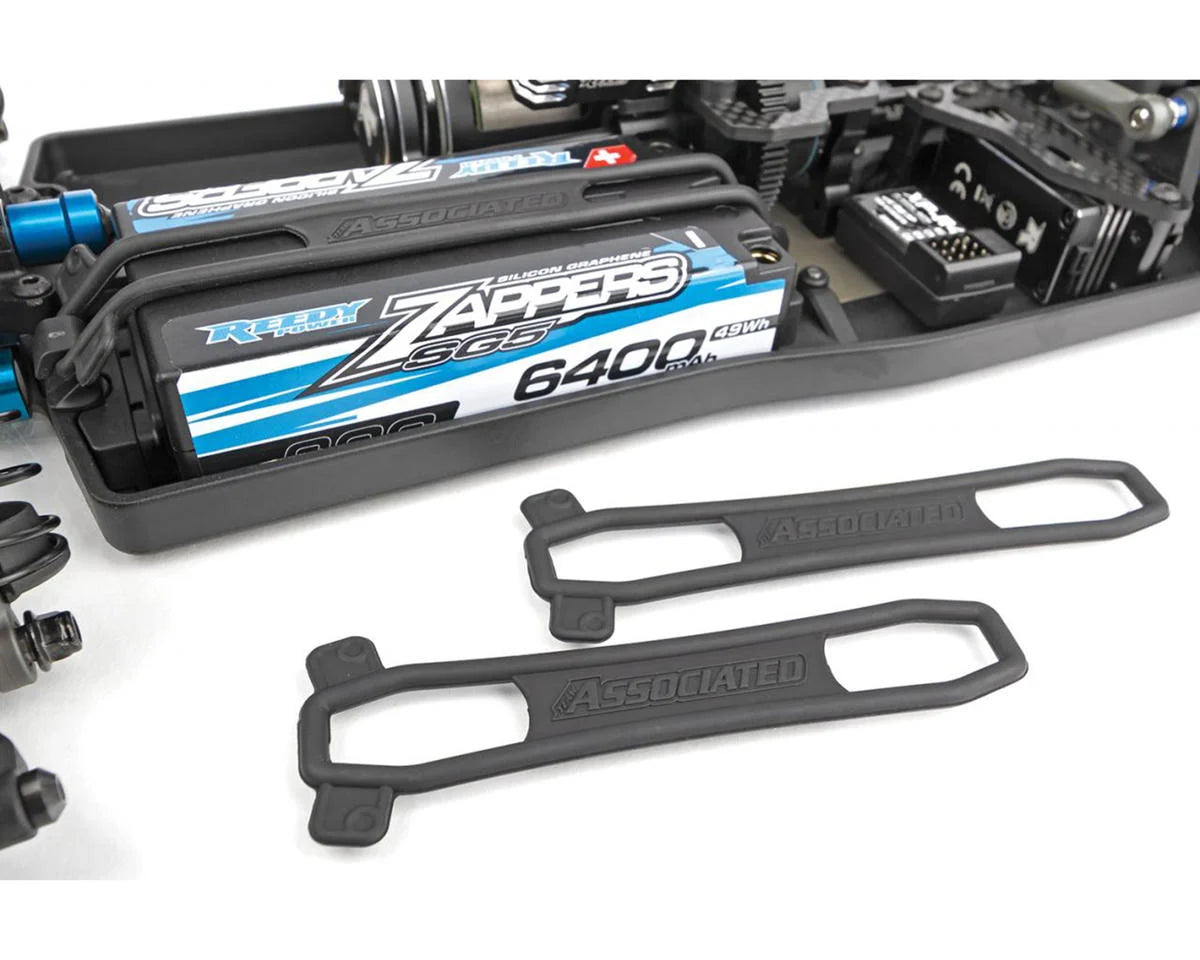

- (7.4V-7.6V) 2S “Shorty” LiPo battery
- Compatible battery charger
- 1:10 scale off-road buggy wheels and tires
- Lexan-spray paint for body
- Assembly Tools such as Body Scissors, Reamer, Hobby Knife, Needle Nose Pliers, Shock Shaft Pliers Wire Cutters, Soldering Iron and Calipers
Specifications:
| Scale | 1:10 |
|---|---|
| Length | 395mm (15.55") |
| Width | Varies* |
| Wheelbase | 280.5-285.5mm (11.0-11.24”) |
| Weight | 885g (1.95lbs) |
| Internal Gear Ratio | 2.50:1 |
| Power Source | Electric |
| Input Voltage | (7.4V-7.6V) 2S LiPo |
| Assembly Level | Unassembled Kit |
*NOTE: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of the assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
