Description
In The Box
- (1) Tamiya TT02 1/10 scale Toyata GR Supra Race Car Kit
- (1) Motor
- (1) ESC
- (4) Wheels
- (4) Tires with Foam Inserts
- (1) Decals
- (1) Product Manual
Needed to Complete
- Radio: 2-channel with high speed steering servo
- Battery: 7.2V - 7.4V stick pack
- Battery Charger: To match selected battery w/Standard connector
- Paint: Tamiya PS paint recommended
- Building and track equipment
Features
- Body is molded accurately in lightweight and durable polycarbonate, with separate light cases front and rear. NOTE: Not LED light compatible.
- Features separate molded parts for side mirrors.
- Twin 5-spoke wheels are molded in black, and paired with racing radial tires.
- The TT-02 chassis is an adaptable and balanced design with excellent stability, plus features such as identical suspension arm and upright components for ease of assembly.
- 4-bevel differential gears and 4-wheel double wishbone suspension make for a smooth ride.
- Includes 540-type motor.
- Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit).
Overview

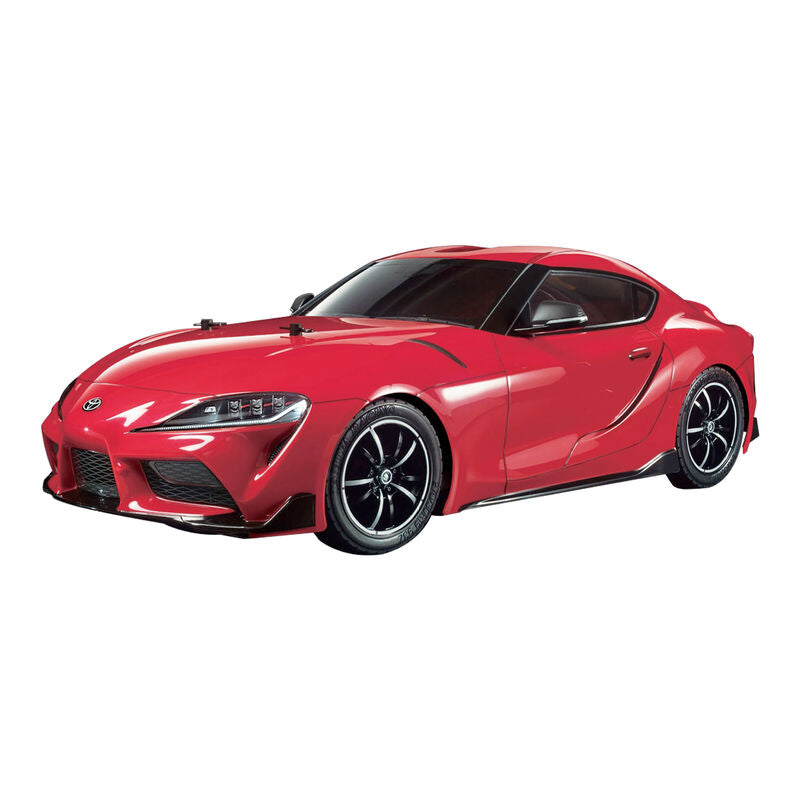

This TAMIYA R/C model recreates the ALL-NEW 2019 Toyota Supra. The Supra has not been in production since 2002 and Toyota has brought it back thanks to a collaborative effort with BMW. The chassis, drivetrain, and engine are based on the BMW Z4. The body and suspension tuning were developed by Toyota to give the Supra a distinctive and classic Toyota sporty feel. Tamiya has faithfully recreated the Supra for radio control enthusiasts with a polycarbonate body that captures the sleek lines and it sits on top the easy to build and drive TT-02 chassis.
TT-02: Adaptable, Balanced Shaft Driven 4WD. The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
Product Specifications
| Approximate Assembly Time | 3-5 Hours |
| Ball Bearings | Ball bearings and plastic bushings |
| Battery | Sold Separately |
| Body | Clear polycarbonate |
| Brakes | Integral with ESC |
| Bushing Material | Plastic |
| Charger | Sold Separately |
| Chassis | Bathtub type, ABS resin construction |
| Completion Level | Kit |
| Differential | Bevel gear |
| Drivetrain | 4WD |
| Power Type | Electric |
| Gear Pitch | 48-Pitch |
| Max Battery Dimensions | 5.3 x 1.8 x 0.9" (135 x 46 x 24mm) |
| Motor Size | 540 |
| Motor Type | Brushed |
| Product Length | 18 (457mm) |
| Product Width | 7.4 (188mm) |
| Radio | Sold Separately |
| Receiver | Sold Separately |
| Scale | 1/10 |
| Servos | Sold Separately |
| Shock Type | Plastic body, friction (not oil-filled) |
| Speed Control | Included |
| Spur Gear | 70T |
| Suspension | Independent double wishbone |
| Tire Tread | Radial |
| Vehicle Type | On-Road |
| Water-Resistant | No |
| Wheelbase | 9.9 - 10.1" (251 - 257mm) adjustable |
| Wheel Type | Nylon, black in color |
