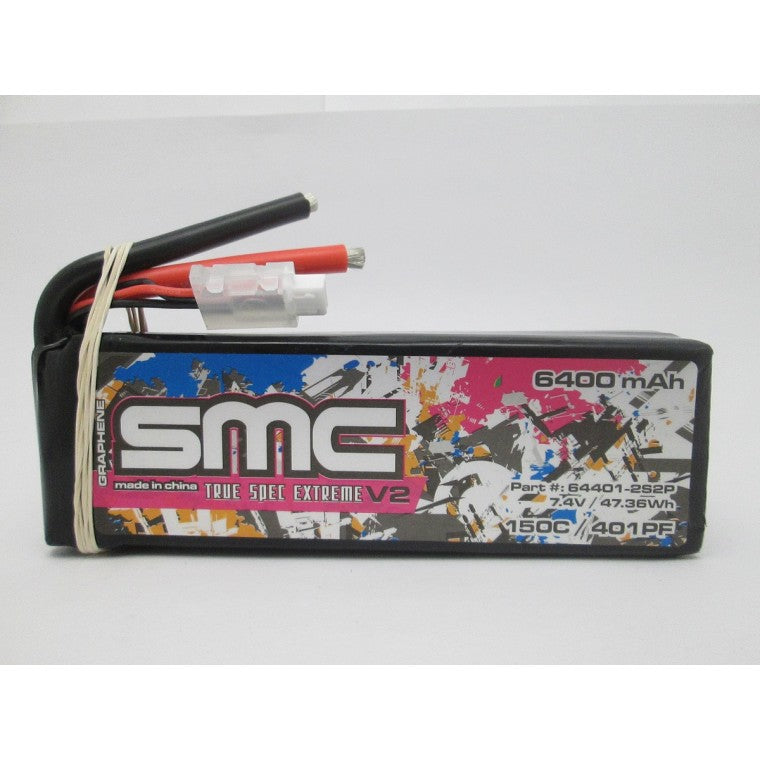

SMC True Spec Extreme Graphene V2 7.4V-6400mAh-150C Softcase *Archived

SMCSKU: SMC64401-2S2P
No reviews

Price:
Sale price$ 78.00
Stock:
Sold out

Description

We are pleased to offer a new line up of speed run and drag racing packs.   These packs have been designed to optimize power to weight ratio.  These packs have the highest possible performance in the market based on their weight/size to power ratio.  If you are serious about speed runs or drag racing then these are must have packs.


To keep the weight as low as possible these are regular softcase packs with no G10 protection plates.  To lower the resistance these have 8AWG wires and come with no connectors.  We do offer connectors in the drop down menu but many who do speed runs/drag racing tend to use different connectors.

 First graph is the data at 250A before the 12 cycles at 300A and second graph is he data at 250A after the 12 cycles.  This shows how advanced materials give better performance and improves cycle life.


Due to the extreme nature of speed runs and drag racing please note there is no warranty on these packs.  Each pack is tested prior to shipping out to make sure it is free of manufacturing defects.


The 4000mAh-2S and 3S are intended for drag racing.  The 6400-2S will give better results in drag racing if you can make close to minimum weight.


- Built with wide tab cells for lowest possible internal resistance.
- 8AWG wires soldered straight to the tabs for lowest possible resistance.


True mAh +/- 5%:     6400mAh

Voltage:                     7.4V

C rate:                       150C

Size:                          27mm x 45mm x 140mm softcase

Weight:                      337gr

Wire size:                  8AWG

Charge rate:              1C to 5C please note that a higher charge rate will put less mAh into the pack and will reduce cycle life



Pack Specs
Milliamp Hour 6400mAh
Voltage 7.4V
C Rate 150C 401 Power Factor
Configuration 2S2P Soft case
Dimensions
Length 138mm / 5.43in
Width 45mm/ 1.77in
Height 26mm / 1.02in
Weight

317gr / 11.18oz

Pack Specs
Milliamp Hour 6400mAh
Voltage 7.4V
C Rate 150C 401 Power Factor
Configuration 2S2P Soft case
Dimensions
Length 138mm / 5.43in
Width 45mm/ 1.77in
Height 26mm / 1.02in
Weight 317gr / 11.18oz
