Description

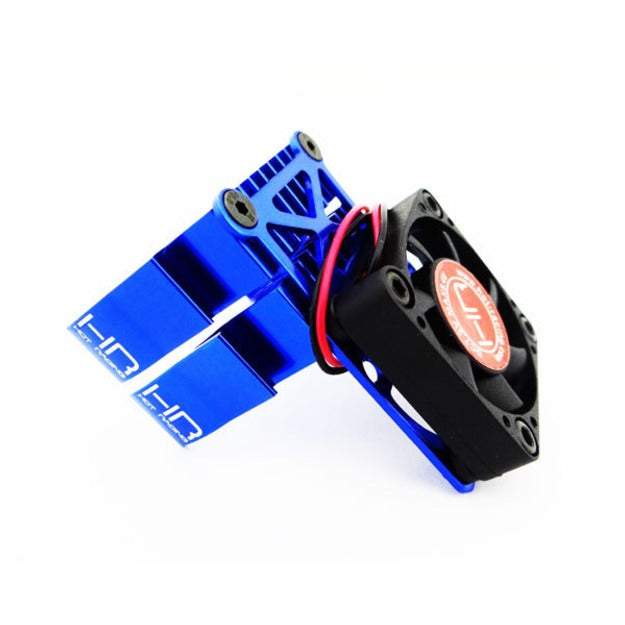

Hot Racing universal clip on motor heat sink and fan for use on 540 and 550 size motors. Versatile two-piece heat sink clip provides 8 different width adjustments.
- Keeps the motor running cooler
- Aluminum construction
- Clip on heat sink attaches to 540 and 550 size motors with a 36mm can diameter
- Two-piece heat sink clip provides 8 different width adjustment options (20-40mm). M3 screws and nuts will be required for some configurations.
- Blue anodized
- Laser etched Hot Racing insignia
- Installation
- Some units may require assembly (1.5mm and 2mm hex wrench required)
- Electrical hook up with 7.2-8.4V MAX DC power source
- Plug requires soldering or connection to a receiver port plug
- Overall height: 39mm (1.54 inch)
- Fan size: 30x30x7.5mm
- Fan mounting hole pattern: 24mm square
- Input voltage: DC 7.2-8.4V MAX
FEATURES:
- Aluminum construction
- Clip on heat sink attaches to 540 and 550 size motors with a 36mm can diameter
- Two-piece heat sink clip provides 8 different width adjustment options (20-40mm). M3 screws and nuts will be required for some configurations.
- Blue anodized
- Laser etched Hot Racing insignia
YOU WILL RECEIVE:
- One (1) heat sink with cooling fanREQUIREMENTS:
- Some units may require assembly (1.5mm and 2mm hex wrench required)
- Electrical hook up with 7.2-8.4V MAX DC power source
- Plug requires soldering or connection to a receiver port plug
SPECIFICATIONS:
- Fan size: 30x30x7.5mm
- Fan mounting hole pattern: 24mm square
- Input voltage: DC 7.2-8.4V MAX
COMMENTS:
- Some chassis do not have sufficient room for the fan assembly. Study the photos, and use your best judgement to determine fitment.
- Color variants include: MH550TE01 (Black), MH550TE02 (Red), MH550TE06 (Blue), MH550TE07 (Purple), MH550TE16 (Tamiya Blue)
- Replacement 30x30x7.5mm cooling fan is Hot Racing MH3030F
