Description
*Please note that this batch of D6 Plus doesn't have the app capabilities due to the chip shortage*

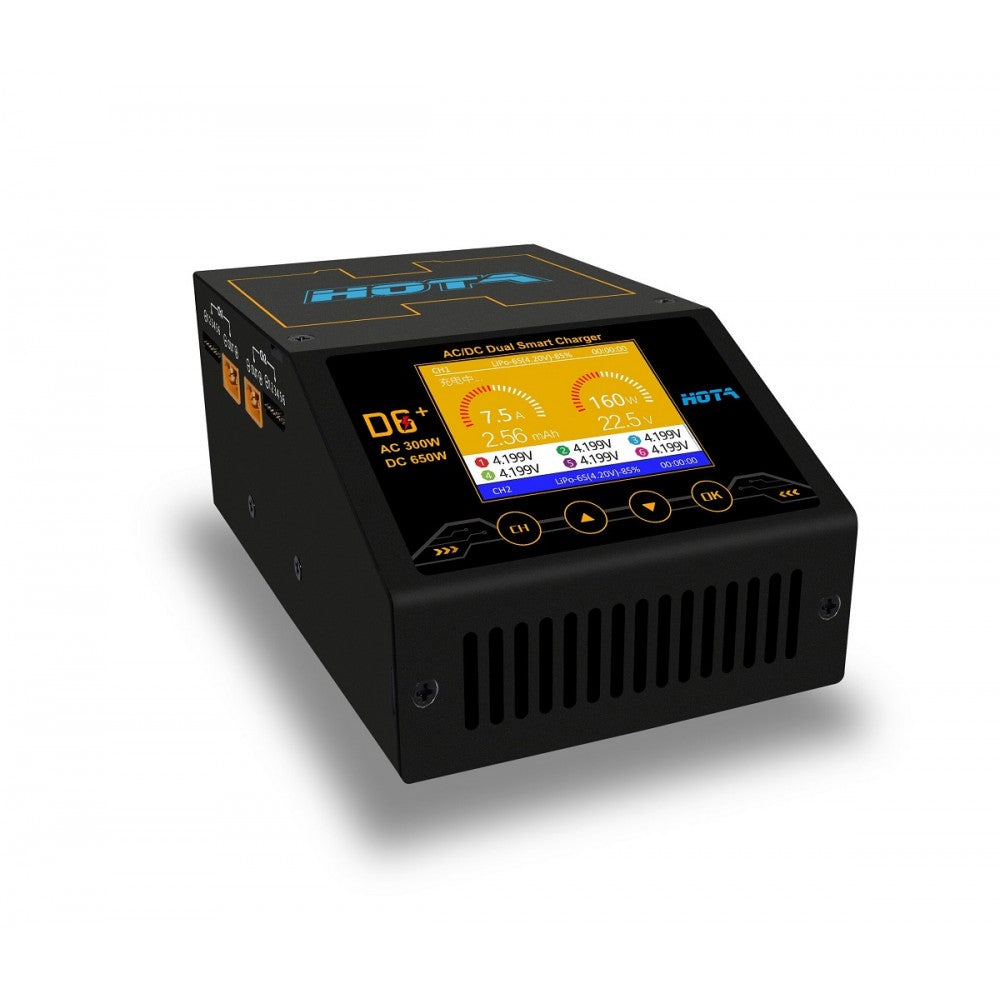

HOTA D6 Plus Dual Channel Charger - 2 x 150W AC , 2 x 325W DC

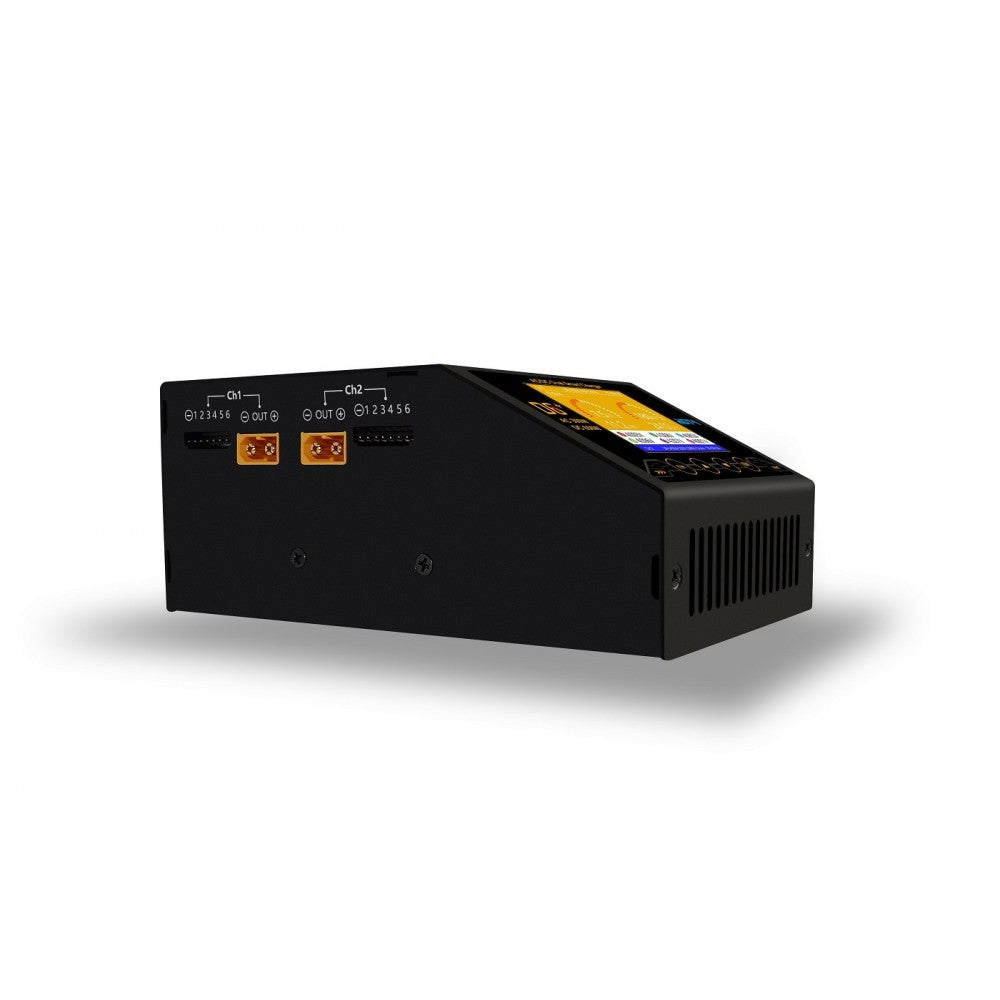

This charger only comes with an AC power cord and no balance boards or charging adapters. Packs must be connected directly to charger via the make XT60 connector and the JST-XH balance connector is connected to the chargers balance port. We offer the chargers with balance boards and charging adapters. You can find these in the charger section of our site.
D6 Plus(AC/DC) has all the bells and whistles at a fraction of the price. High balance discharge current so packs that are not perfectly matched for IR or mAh will charge faster.
FEATURES
- Builtin AC power supply
- Dual Channel Output - 2 x 150W AC - 2 x 325W DC
- Faster Charging - Highly optimized charging algorithm with efficiency up to 94%
- Intelligent Upgrade, Fast Experience - Built-in Micro USB connector for a much more convenient firmware upgrade experience.
- Compatible with Various Batteries - Fully supports LiHv/LiPo/LiFe/Lilon/Lixx (1~6S), NiZn/Nicd/NiMH (1~16S), Smart Battery (1~6S), Lead Acid(Pb)（2~24V), Enelop（1~16S）
- Safe and Reliable - The most advanced circuit design and charging algorithm ensures a much more reliable charging and discharging with built-in overvoltage, overcurrent, overtemperature, short circuit and other malfunction warnings ensuring the safety of you and your Lipos
*Please Note: D6 (DC Only) & D6 Plus(AC/DC)
SPECIFICATIONS
Input Voltage: AC100~240V / DC 6.5~30V
Charge Current: 0.1~15A × 2
Charge Power: DC 325W × 2(650W)
AC 300W（Support power distribution with maximum 210W per channel）
Discharge Power Internal discharge:15W × 2(balance port 10W）
External discharge:325W × 2(650W)
Battery Type LiHv/LiPo/LiFe/Lilon/Lixx : 1~6S
NiZn/Nicd/NiMH: 1~16S
Smart Battery: 1~6S
Lead Acid(Pb) : 2~24V
Enelop: 1~16S
Balance Current: 1600mA × 2
Discharge Current: 0.1~3A × 2
External Discharge Current: 1~15A × 2
USB Output: 5V / 2.1A
Dimensions: 98 ×165 × 67.5mm
Net Weight: 825gr
Charge Current: 0.1~15A × 2
Charge Power: DC 325W × 2(650W)
AC 300W（Support power distribution with maximum 210W per channel）
Discharge Power Internal discharge:15W × 2(balance port 10W）
External discharge:325W × 2(650W)
Battery Type LiHv/LiPo/LiFe/Lilon/Lixx : 1~6S
NiZn/Nicd/NiMH: 1~16S
Smart Battery: 1~6S
Lead Acid(Pb) : 2~24V
Enelop: 1~16S
Balance Current: 1600mA × 2
Discharge Current: 0.1~3A × 2
External Discharge Current: 1~15A × 2
USB Output: 5V / 2.1A
Dimensions: 98 ×165 × 67.5mm
Net Weight: 825gr
Lipo charging rates for each channel when set at 150W per channel:
1S: 15 Amps
2S: 15 Amps
3S: 12 Amps
4S: 9 Amps
5S: 7 Amps
6S: 6 Amps
Lipos charging rates when using one channel connected to AC.
1S: 15 Amps
2S: 15 Amps
3S: 15 Amps
4S: 12.5 Amps
5S: 10 Amps
6S: 8.5 Amps
Lipos charging rates on each channel when connected to a 24V DC power supply.
1S: 15 Amps
2S: 15 Amps
3S: 15 Amps
4S: 15 Amps
5S: 15 Amps
6S: 13 Amps
