Hobbywing QuicRun 10BL120 G2 Sensorless BL ESC/3652SL 5400kV Motor Combo

HobbyWingSKU: HWI38030209
No reviews

Price:
Sale price$ 84.99
Stock:
Only 1 unit left

Pickup available at Chantilly Store

Usually ready in 1 hour

Description

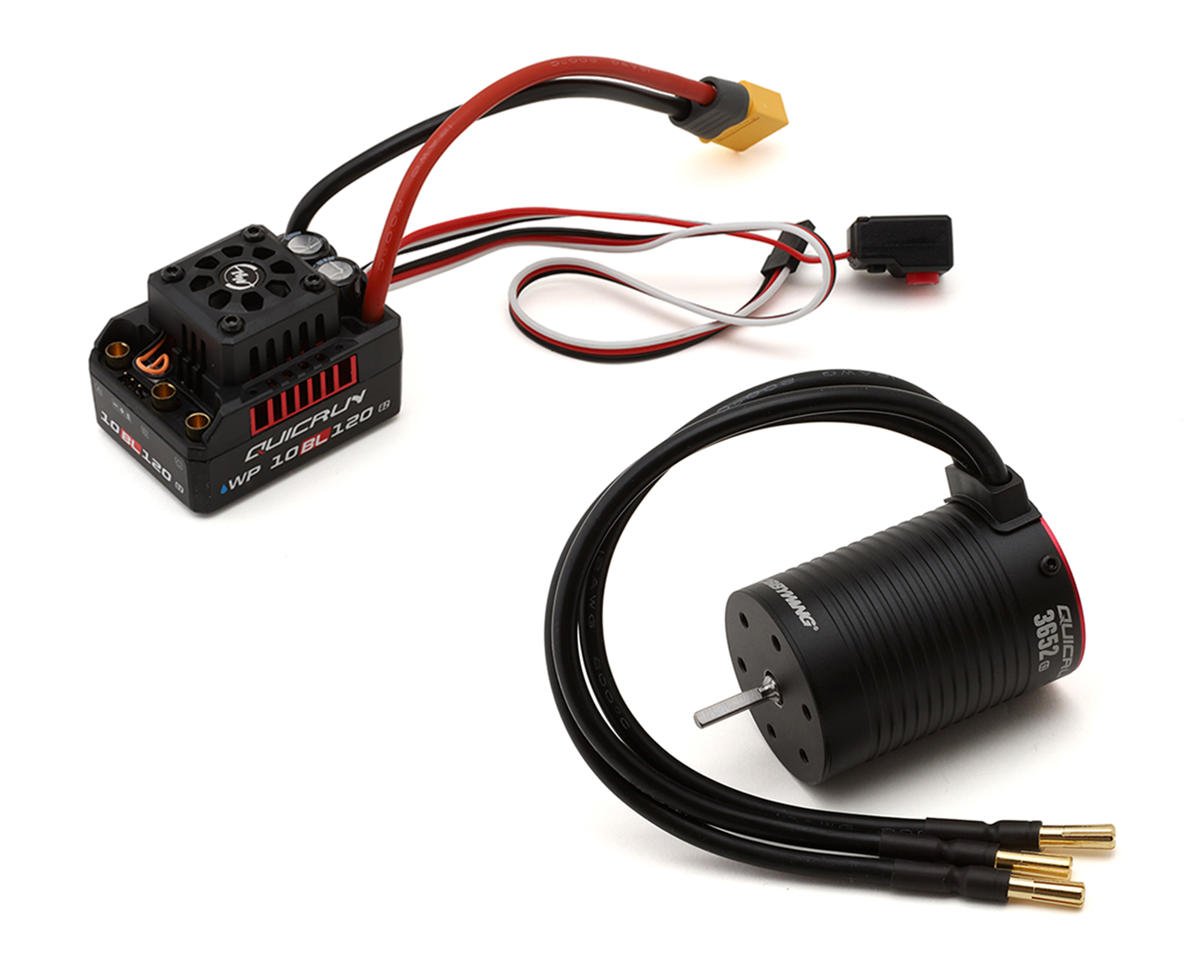

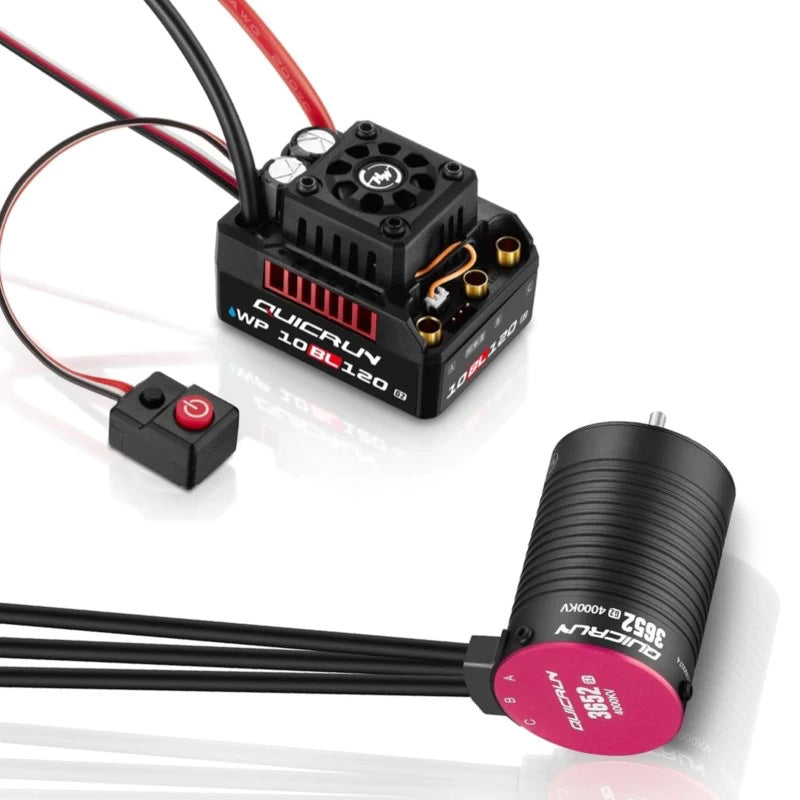

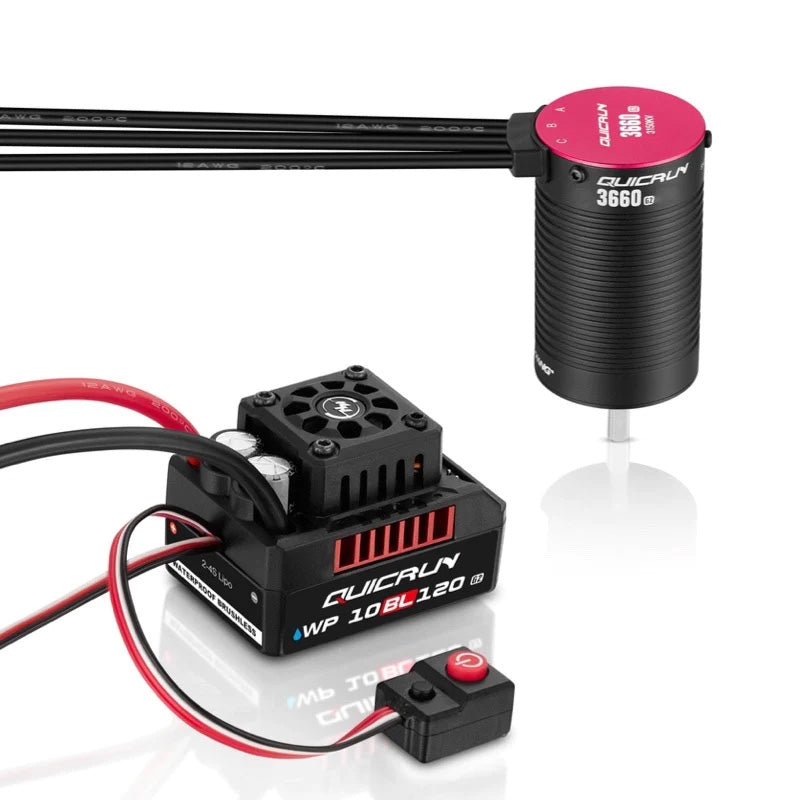

Hobbywing Quicrun 10BL 120A ESC & Motor Combo

The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL's built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.


Features:

  • G2 QuicRun 10BL120

    • Intelligent freewheeling technology

    • Extreme performance

    • Powerful built-in BEC

    • Efficient cooling system

    • Capacitor Thermal Protection

    • Built-in capacitor

    • IP-67 waterproof Rating

G2 QuicRun 3660SL

    • High efficiency for more power with lower temperatures!

    • 4-pole rotor design for more torque with strong explosive force.

    • Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.

    • 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.


Specifications:

    • ESC:

    • Scale: 1/10th

    • Brushed/Brushless: Brushless

    • Sensored/Sensorless: Sensorless

    • Waterproof: IP-67

    • Current:

      • Continuous: 120A

      • Peak: 760A

    • Input Voltage: 2-4S LiPo

    • BEC Output: 6V/7.4V @ 5A

    • Output Connectors: 4.0mm Bullets

    • Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)

    • Weight: 4.19oz (119g)

    • Motor:

    • Input Voltage: 2S LiPo

    • KV: 5400kV

    • Pole: 4

    • Motor Diameter: 1.42" (36mm)

    • Motor Length: 2.05" (52mm)

    • Shaft Diameter: 0.13." (3.175mm)

    • Shaft Length: 0.59" (15mm)

    • Front Bearing size: D13*D5*T5

    • Rear Bearing size: D13*D5*T4

    • Weight: 224g

Includes:

  • (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC

  • (1) QuicRun 3652SL G2 Sensorless Brushless Motor (5400kV)
