Description

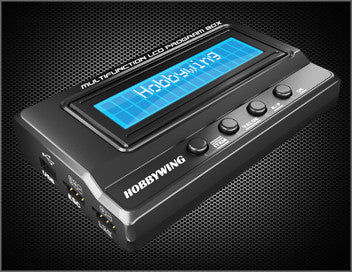

This is the Hobbywing Multifunction LCD Program Box. Program your ESC or check the voltage of your LiPo battery, the Hobbywing Multifunction LCD Program Box does it all.
Features:
- Program the parameters of your ESC
- Each parameter is displayed on the easy-to-read LCD screen
- Works as a USB adapter to link the ESC with a PC to update the firmware
- Measure the voltage of a LiPo battery, either the whole battery pack or each cell
Specifications:
Size: 90x51x17mm
Weight: 65g
Input Voltage: 4.5-12.6V (If the ESC doesn't have a built-in BEC, you must use an additional battery pack to supply the program box)
Display: 16x2 characters LCD
Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)
Firmware: compatible with all speed controllers, including Xerun series V2.0/2.1/3.0/3.1, EZrun V2.0, Platinum series and Platinum V3 series
