Hobbywing EZRun Max8 2200kV Brushless ESC/Motor Combo w/Program Box & XT90 Plug

Save 29%
HobbyWingSKU: HWI38010400
No reviews

Price:
Sale price$ 212.00 Regular price$ 297.00
Stock:
Sold out

Pickup currently unavailable at Chantilly Store

Description

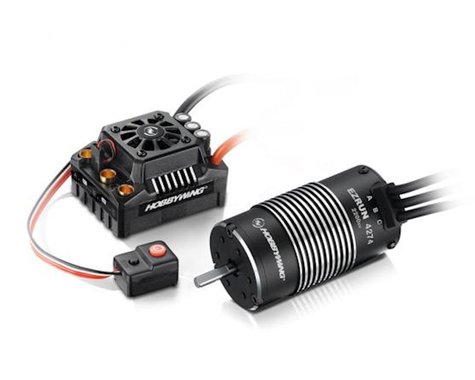

The Hobbywing EZRun Max8 Waterproof Brushless ESC/Motor Combo with installed XT90 connectors includes a 2200kV sensorless motor to create an all in one power system upgrade for your Monster Truck and other high power applications. This package also includes a Hobbywing Program Box to adjust ESC program settings.

The 2200kV EZRun 4274 Sensorless Brushless Motor is compatible with 2-6S LiPo batteries and is a perfect choice for 1/8 scale electric monster trucks such as the Pro-Line Pro MT 4x4, HPI Savage and Thunder Tiger E-Mat.

NOTE: Photos show T-Plugs on the ESC. This ESC has been updated and now includes XT90 connectors.

Features:

  • Waterproof ESC!
  • Sensorless Brushless Operation
  • 3S-6S LiPo Compatible ESC
  • XT90 Plugs
  • Includes Program Box
  • 4-pole motor
  • Efficient motor operation
  • high quality construction

Specifications:

  • ESC:
    • Continuous Current: 150A
    • Peak Current: 950A
    • Plug Type: XT90
    • Motor Type: Sensorless Brushless
    • Applications: 1/8 Touring Car, Buggy, Truggy, Monster Truck
    • Brushless Motor Limit 4S LiPo/12-Cell NiMH: ?3000 (4274 size motor)
    • Brushless Motor Limit 6S LiPo/18-Cell NiMH: ?2400 (4274 size motor)
    • LiPo/NiMH Cells: 3-6S LiPo / 9-18 Cell NiMH
    • BEC Output: 7.4V Switchable, Continuous current of 6A (Switch mode BEC)
    • Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
    • Size (LxWxH): 59.8x48x36.8mm
    • Weight: 173.5g
    • Programming Port: Fan/PRG Port
  • Motor:
    • KV (No-load): 2200
    • R. (?): 0.0058
    • Current No-load?A?: 5
    • Max. Output Power?W?: 3000
    • C.at the point of M.O.P *?A?: 120
    • Motor Diameter x Length ?mm?: 42x74
    • Shaft Diameter x Length ?mm?: 5x18.5
    • LiPo (S): 2-6
    • W (g): 418g
    • Application: 1/8th Monster Truck / Truck
    • Sensored: No

Includes:

  • EZRun Max8 ESC w/XT90
  • 2200kV EZRun 4274 Sensorless Brushless Motor
  • EZRun LED Program Card
  • Accessories (double sided tape, capacitor block, connector wires, etc)
