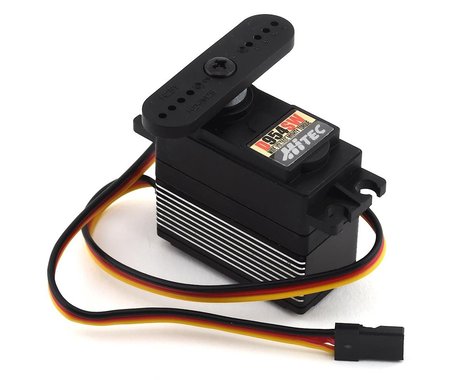

Hitec D9545SW High Torque Steel Gear Servo (High Voltage)

Save 38%
HitecSKU: HRC36954
No reviews

Price:
Sale price$ 89.99 Regular price$ 143.99
Stock:
Only 1 unit left

Pickup available at Chantilly Store

Usually ready in 1 hour

Description

The Hitec D9545SW High Torque Steel Gear Servo, a technologically-advanced servo that is powered by Hitec's 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The servos unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from Hitec's popular HS-7954SH servo.

Features:
  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline
  • Coreless Metal Brush Motors
  • Nylon Reinforced Plastic Upper and Lower Case
  • Diamond Cut Aluminum Heat Sink Center Case
  • Dust Resistant and Splash Proof Case
  • Programmable Features:
  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset
Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60°): 0.19 ~ 0.12
Maximum Torque Range oz./in.: 251 ~ 405
Maximum Torque Range kg./cm.: 18.0 ~ 29.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 500 mA
Stall Current Draw: 5,200 mA
Dead Band Width: 1 µs
Dimensions (Inches): 1.57 x 0.78 x 1.46
Dimensions (Metric): 40.0 x 20.0 x 37.0
Weight (Ounces): 2.40
Weight (Gram): 68.0
Circuit Type: 32bit Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: MK 1st Gear & 3 Steel Alloy Gears
Bearing Type: Dual Ball Bearing
Output Shaft (type/Ømm): H25T
Case Material: Plastic/Aluminum
Dust/Water Resistance: Splash Proof
Connector Gauge (AWG)/Strand Count: 20/80

Includes:
  • (1) D9545SW High Torque Steel Gear Servo
  • (3) Steel Alloy Gears Set
  • Metal / Karbonite 1st Gear Set
  • Plastic/Aluminum Case Set
  • Applicable Horns & Screws
