Description
Features
Overview
True to the FMS spirit, no detail was overlooked in the design of the ASW-17. The FMS engineers made 4 expensive tooling adjustments just to micro-adjust the airfoil for perfect efficiency. The wing, vertical and horizontal stabilizers are designed with a snap-together structure. With a simple snap, the surfaces attach to the fuselage with pinpoint precision- no screws or glue necessary! Build the aircraft in as little as 3 minutes! Like the 3000mm Fox, the ASW-17 has a pre-installed carbon fiber spar that ensures wing rigidity in high-G maneuvers. To achieve the same dihedral as the real aircraft, the ASW-17 was designed with a specialized CNC aluminum spar joiner- allowing the aircraft to maintain its wing geometry during demanding flight routines. Performance-wise, a high-quality Hobbywing 40A ESC paired with a Predator 3541-750KV motor provides ample power with a 4S pack to perform most aerobatic maneuvers. If efficiency, stability and aerobatic capabilities are what you seek in a glider, look no further than the FMS 2500mm ASW-17!
- 14.8V 2200-2600mAh 35C Battery
- 6-Channel Radio
- (1) ASW-17 EP Glider PNP
- (1) Hobbywing 40A ESC
- (1) Predator 3541-750KV motor
- (1) Product Manual

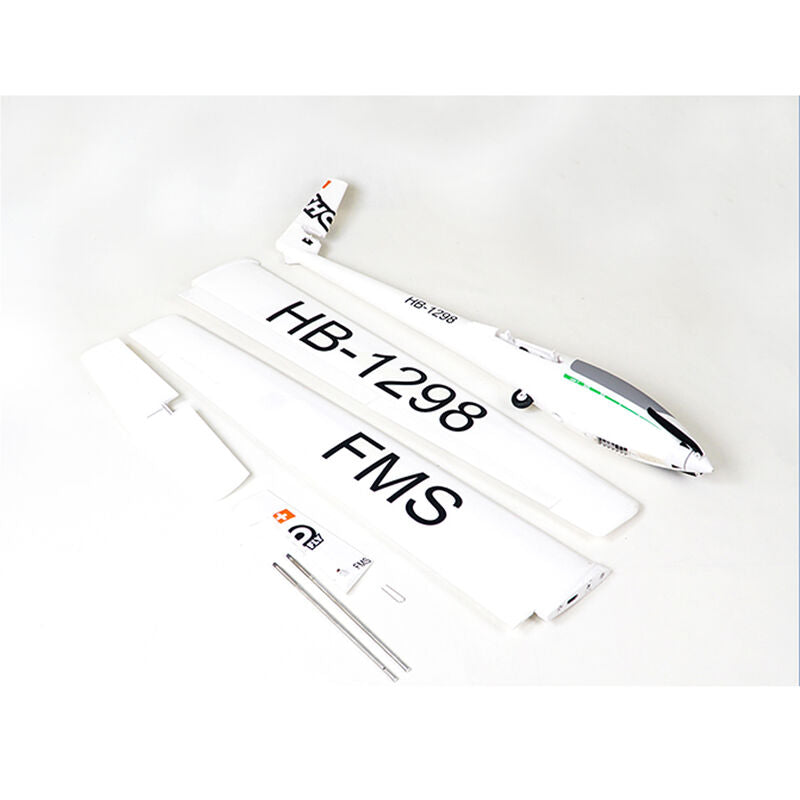

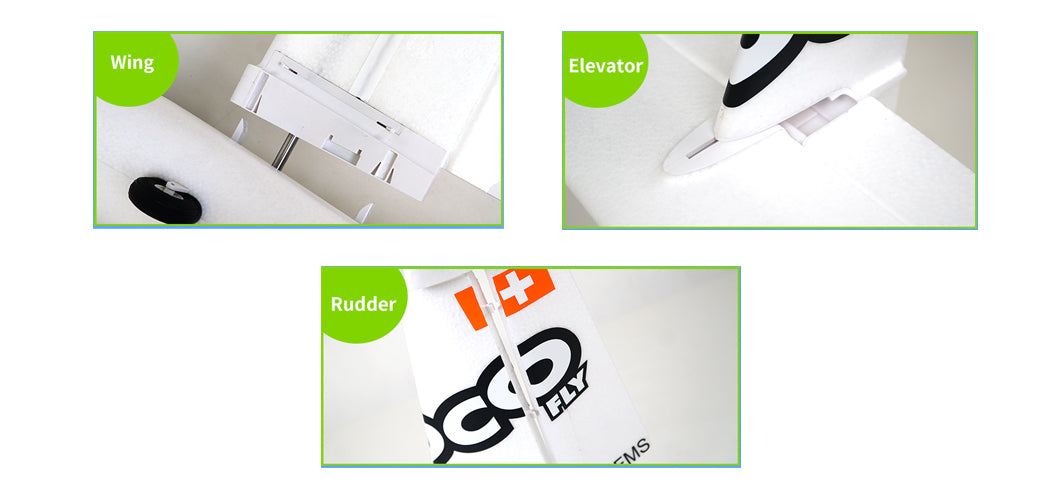

Build the aircraft in minutes!
The wing, vertical and horizontal stabilizers are designed with a snap-together structure. With a simple snap, the surfaces attach to the fuselage with pinpoint precision. No screws or glue necessary!
High strength wing structure
Like the 300mm Fox, the ASW-17 has a pre-installed Carbon-fiber spar that ensures wing rigidity in high-G maneuvers.

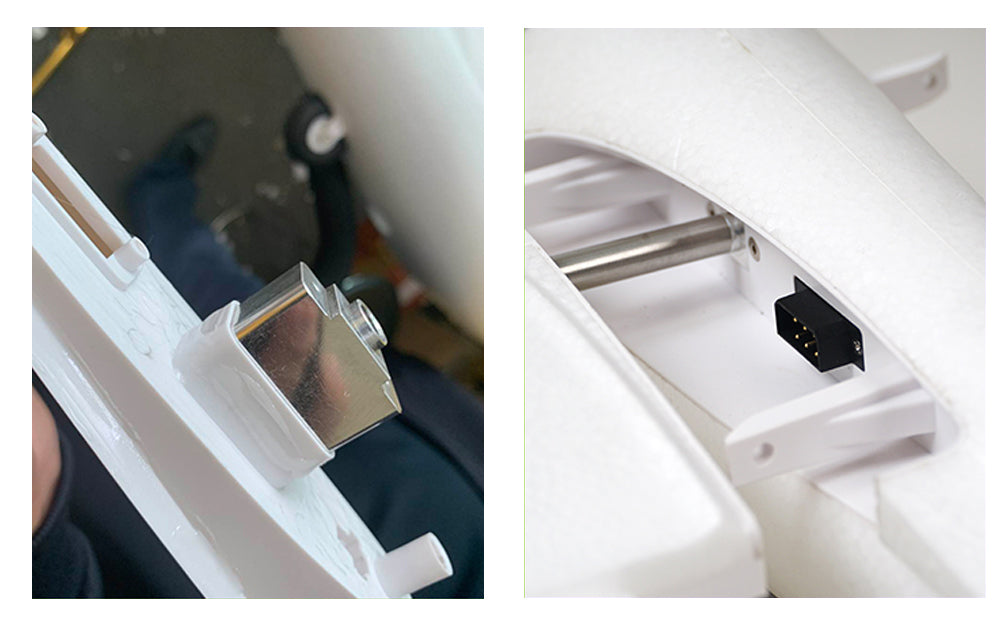

Metal spar connectors
Metal spar connectors embedded within the wing ensures scale and functional wing dihedral.
Spar joiner
The ASW-17 was designed with specialized CNC aluminum spar joiner — allowing the aircraft to maintain its wing geometry during demanding flight routines.

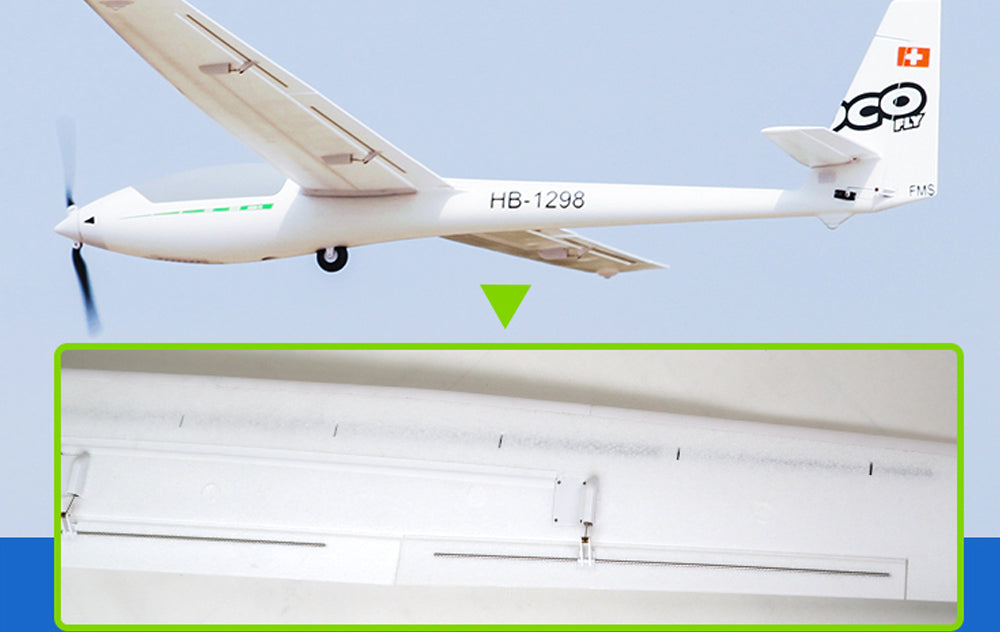

Aileron and Flap Structure
Reinforced aileron and flap structure for precision flight characteristics.

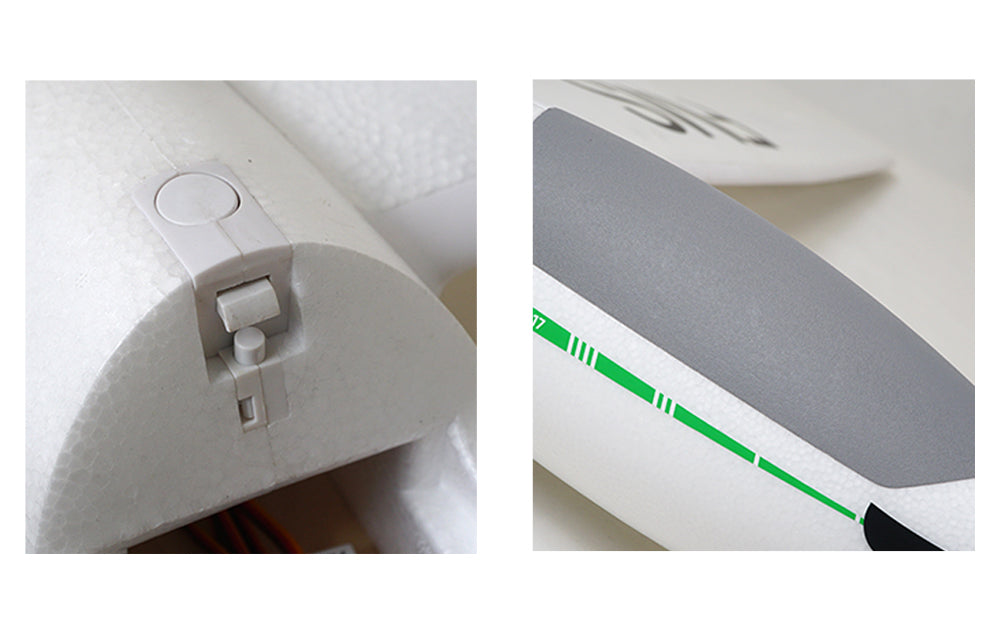

Latch and Canopy
Press-to-release canopy latch and a textured canopy.

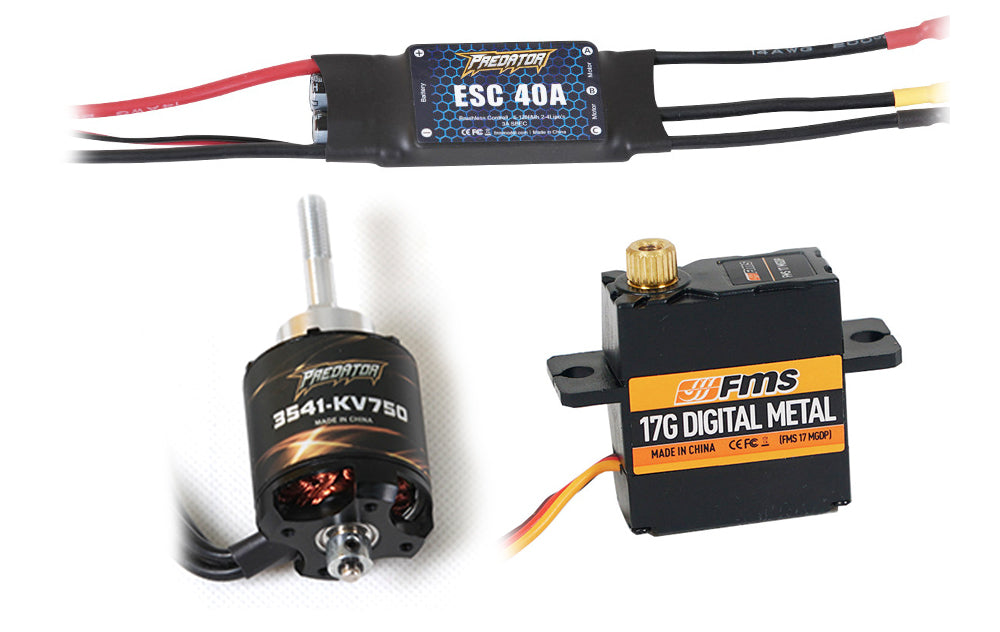

Motor, ESC and Servo
Predator 3541-750KV motor, a high-quality Hobbywing 40A ESc and 17g servos.
Specs
Approximate Assembly Time Less than 1 Hour
Approximate Flight Time 10 minutes
CG (Center of Gravity) 2.7 - 3.1" (70 - 80mm) back from leading edge of wing measured at the fuselage
Charger Sold Separately
Completion Level Plug-N-Play
Flaps Yes
Power Type Electric
Landing Gear Monowheel with tail skid
Material EPO foam
Minimum Required Radio 6-channel
Minimum Speed Control 40A included with XT-60 battery connector
Motor Size 3541-750Kv
Product Length 54.7 in (139mm)
Propeller Size 13.5x6 fold away
Recommended Motor Battery 4S LiPo 14.8V 35C 2200-2600mAh w/XT60 connector (sold separately)
Retracts No
Servos Two 9g, four 17g
Technology AS3X
Transmitter Range Full
Trim Scheme Colors White with black lettering
Wing Area 779.5 sq in (50.3 sq dm)
Wing Loading 0.09 oz sq/in (45.7 g sq/dm)
Wingspan 98.4 in (2500mm)
