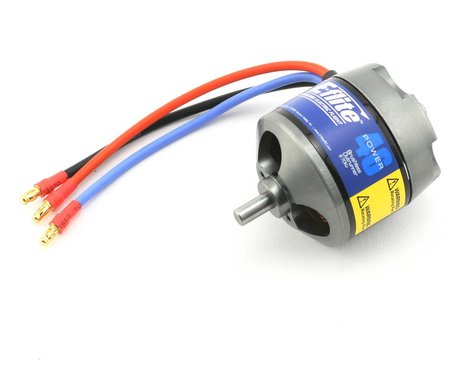

E-flite Power 46 Brushless Outrunner Motor (670kV)

Save 25%
E-fliteSKU: EFLM4046A
No reviews

Price:
Sale price$ 103.99 Regular price$ 137.99
Stock:
Only 1 unit left

Pickup available at Chantilly Store

Usually ready in 1 hour

Description

Features

  • High-quality construction with ball bearings and hardened steel shaft
  • Ideal for models requiring up to 925 watts of power
  • Quiet, lightweight operation
  • Slotted 14-pole outrunner design
  • Equivalent to 40- to 46-size glow engine for planes weighing 4–7 lb (1.8–3.2 kg)
  • External rotor design—6mm shaft can easily be reversed for alternative motor installations
  • Ideal for 25- to 40-size 3D airplanes up to 5 lb (2.2 kg)
  • Includes mount, prop adapters and mounting hardware
  • High-torque, direct-drive alternative to inrunner brushless motors

Overview

Key Features

  • Equivalent to 40- to 46-size glow engine for planes weighing 4–7 lb (1.8–3.2 kg)
  • Ideal for 25- to 40-size 3D airplanes up to 5 lb (2.2 kg)
  • Ideal for models requiring up to 925 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters and mounting hardware
  • External rotor design—6mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quiet, lightweight operation

Needed To Complete

60A brushless ESC
4S–5S Li-Po or 12- to 16-cell Ni-MH/Ni-Cd
12x8 to 14x10 prop

Overview

The Power 46 is designed to deliver clean and quiet power for .40 to 46-size sport and scale airplanes weighing 4 to 7 pounds (1.8–3.2 kg), 25- to 40-size 3D airplanes up to 5 pounds (2.2 kg), or models requiring up to 925 watts of power. It’s an especially good match for Hangar 9 .40-size trainers like the Alpha .40 (HAN2450), Arrow .40 (HAN2625) and warbirds like the T-34 Mentor 40 (HAN2425). Also a great match for sport planes like the Ultra Stick 40 (HAN1675 or HAN1690), Seagull Spacewalker 40 (SEA2050), and smaller sport 3D planes like the Twist 40 (HAN2650).

Detailed Information

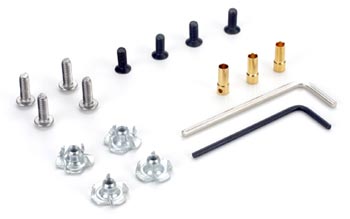

Hardware is included with the purchase of this motor.
Examples of Airplane Setups:

NOTE: All data measured at full throttle. Actual performance may vary depending on battery and flight conditions.

Hangar 9 Ultra Stick 40 ARF (HAN1675 / HAN1690)

Option 1:
Motor: Power 46
ESC: Castle Creations Phoenix 60 (Standard settings with 12V Soft Li-Po cutoff and no brake)
Prop: APC 13x8E
Battery: Thunder Power PRO LITE 6000mAh 4S3P (THP60004S3PPL)
Flying Weight w/Battery: 5.8 lb

Amps Volts Watts Input Watts/Pound RPM
51.5 14.4 745 128 8250

Expect very strong performance with very short takeoff rolls and a great balance of thrust and top speed. Average duration is approximately 12 to 20 minutes depending on throttle management.


Option 2:
Motor: Power 46
ESC: Castle Creations Phoenix 60 (Standard settings with 12V Soft Li-Po cutoff and no brake)
Prop: APC 13x8E
Battery: Thunder Power PRO LITE 4200mAh 4S2P (THP42002S2PPL x2 in series)
Flying Weight w/Battery: 5.4 lb

Amps Volts Watts Input Watts/Pound RPM
47.4 14.1 670 124 8220

Expect strong performance with very short takeoff rolls and a great balance of thrust and top speed. Average duration is approximately 8 to 15 minutes depending on throttle management.


Option 3:
Motor: Power 46
ESC: Castle Creations Phoenix 60 (Standard settings with 12V Soft cutoff and no brake)
Prop: APC 13x8E
Battery: Sanyo RC-3000HV 14-Cells (7-Cell packs x2 in series)
Flying Weight w/Battery: 6.7 lb

Amps Volts Watts Input Watts/Pound RPM
44.0 13.4 590 89 7950

Expect good performance with a good balance of thrust and top speed. Average duration is approximately 5 to 7 minutes depending on throttle management.

Specifications

Bushing Or Bearing
Bearing
Cells
12–16 Ni-MH/Ni-Cd or 4–5S Li-Po
Connector Type
3.5mm Bullet
Idle Current (Io)
3.90A @ 10V
Motor Design
Outrunner
Motor Type
Brushless
Recommended Prop Range
12x8 to 14x10
Resistance
.04 ohms
RPM/Volt (Kv)
670
Shaft Diameter
6mm (.24 in)
Voltage
14.4 to 19.2
Wire Gauge
14 AWG
