Description
Key Features
- Equivalent to a 30- to 36-size glow engine for sport and scale airplanes weighing 3.5–6 lb (1.6–2.7 kg)
- Ideal for 25- to 36-size 3D airplanes up to 4.5 lb (2 kg)
- Ideal for models requiring up to 800 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors

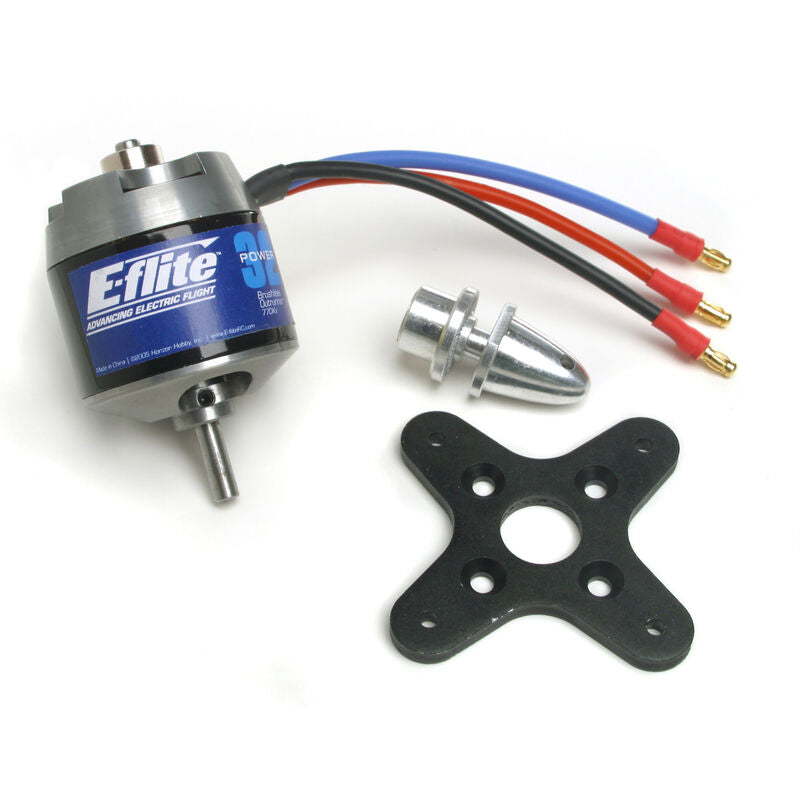

- Includes mount, prop adapter and mounting hardware
- Quite, lightweight operation
- External radial rotor design—5mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
Needed To Complete
- 60A brushless ESC
- 3–5S Li-Po or 10- to 16-cell Ni-MH/Ni-Cd
- 11x7 to 14x10 prop; 10x10E tested on 5S in Sundowner 36
Overview
The Power 32 is designed to deliver clean and quiet power for 30- to 36-size sport and scale airplanes weighing 3.5 to 6 pounds (1.6 to 2.7 kilograms), 25- to 36-size 3D airplanes up to 4.5 pounds (2 kilograms), or models requiring up to 800 watts of power. It's an especially good match for the Gee Bee Tiger Moth, TopFlite DC-3, Phoenix Sonic 25 and 3D airplanes such as the E3D.
Detailed Information
Hardware is included with the purchase of this motor.
Specs
| Bushing Or Bearing | Bearing |
| Cells | 10–16 Ni-MH/Ni-Cd or 3–5S Li-Po |
| Connector Type | 3.5mm Bullet |
| Idle Current (Io) | 2.40A @ 10V |
| Motor Design | Outrunner |
| Motor Type | Brushless |
| Outer Diameter | 1.7 in (42mm) |
| Recommended Prop Range | 11x7 to 14x10 |
| RPM/Volt (Kv) | 770 |
| Shaft Diameter | 5mm (.20 in) |
| Voltage | 12–16.8 |
| Wire Gauge | 14 AWG |
