Description
Key Features
- Ideal for airplanes requiring up to 850 watts of input power
- Equivalent to a 25-size glow engine for high-power airplanes weighing 3- to 5.5-pounds (1.4- to 2.5-kilograms) or 15-sized high-speed electric Formula One racers weighing up to 4 pounds (1.8 kilograms)
- Includes mount, prop adapter and mounting hardware
- External rotor design; the shaft can easily be reversed for alternative motor installations
- High-torque, direct-drive alternative to inrunner brushless motors
- Quiet, lightweight operation
- High-quality construction with ball bearings and hardened 5mm steel shaft
Overview

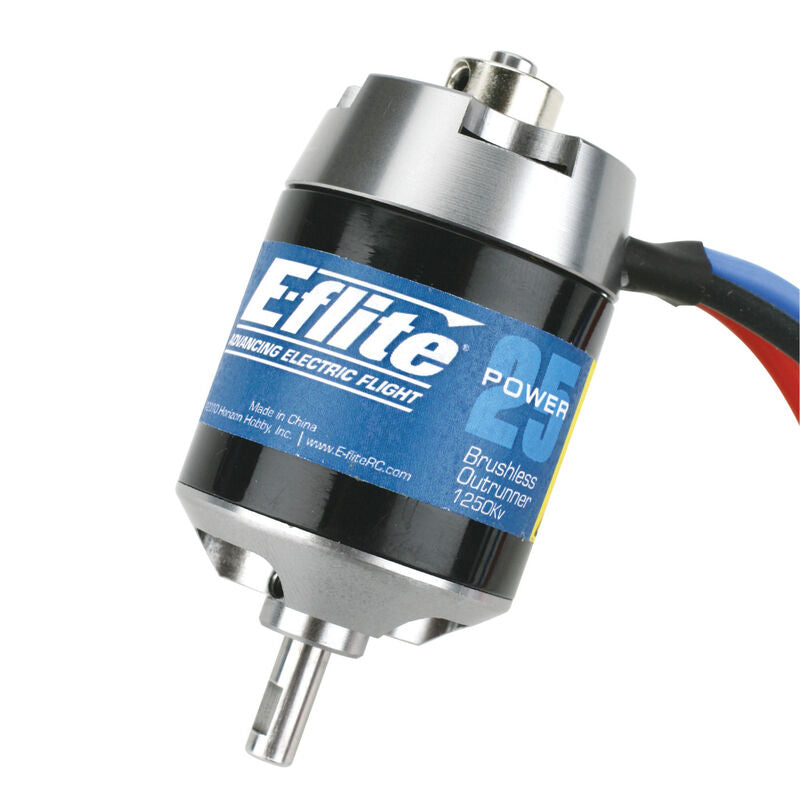

Pilots demanding more speed and power from their motors should look at E-flite's Power 25 BL Outrunner Motor, 1250Kv. Delivering more power than the 870Kv Power 25 (and at higher RPM's), it was designed specifically for the NMPRA's EF1 electric pylon racing class.
The 1250Kv Power 25 BL motor was created for for high-power airplanes weighing 3- to 5.5-pounds (1.4- to 2.5-kilograms) or 15-sized high-speed electric Formula One racers weighing up to 4 pounds (1.8 kilograms).
Specs
Application | Aircraft |
Bushing Or Bearing | Bearing |
Cells | 3S - 4S Li-Po 10 - 14 Ni-MH/Ni-Cd |
Connector Type | 3.5mm Bullet |
Idle Current (Io) | 2.00A |
Input Voltage | 11.1 - 16.8V |
Maximum Burst Current | 58A |
Maximum Continuous Current | 50A |
Motor Design | Outrunner |
Motor Type | Brushless |
Outer Diameter | 1.4" (36 mm) |
Product Length | 2.1" (53 mm) |
Product Weight | 0.4lbs (181g) |
Recommended Prop Range | 8x6E to 8x8E (4S) or 8x8E to 10x10E (3S) |
Resistance | .02 ohm |
RPM/Volt (Kv) | 1250 |
Shaft Diameter | 5mm (.20 in) |
Voltage | 11.1 - 16.8 |
Wire Gauge | 14 AWG |
