Description

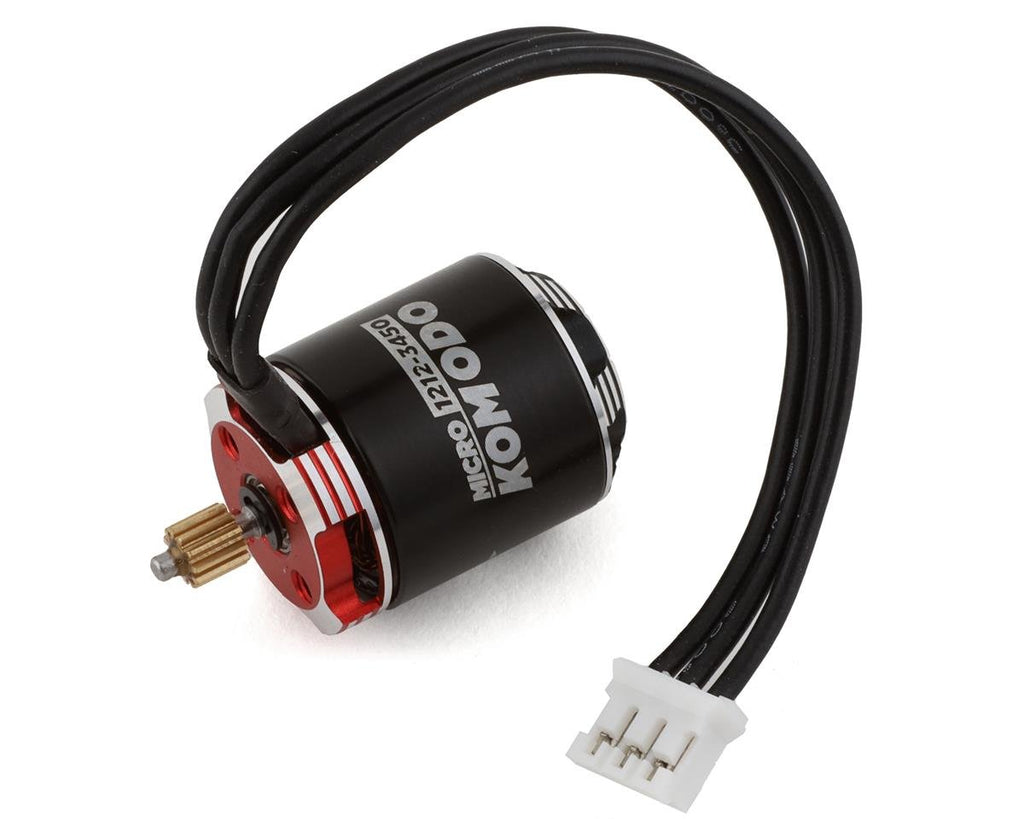

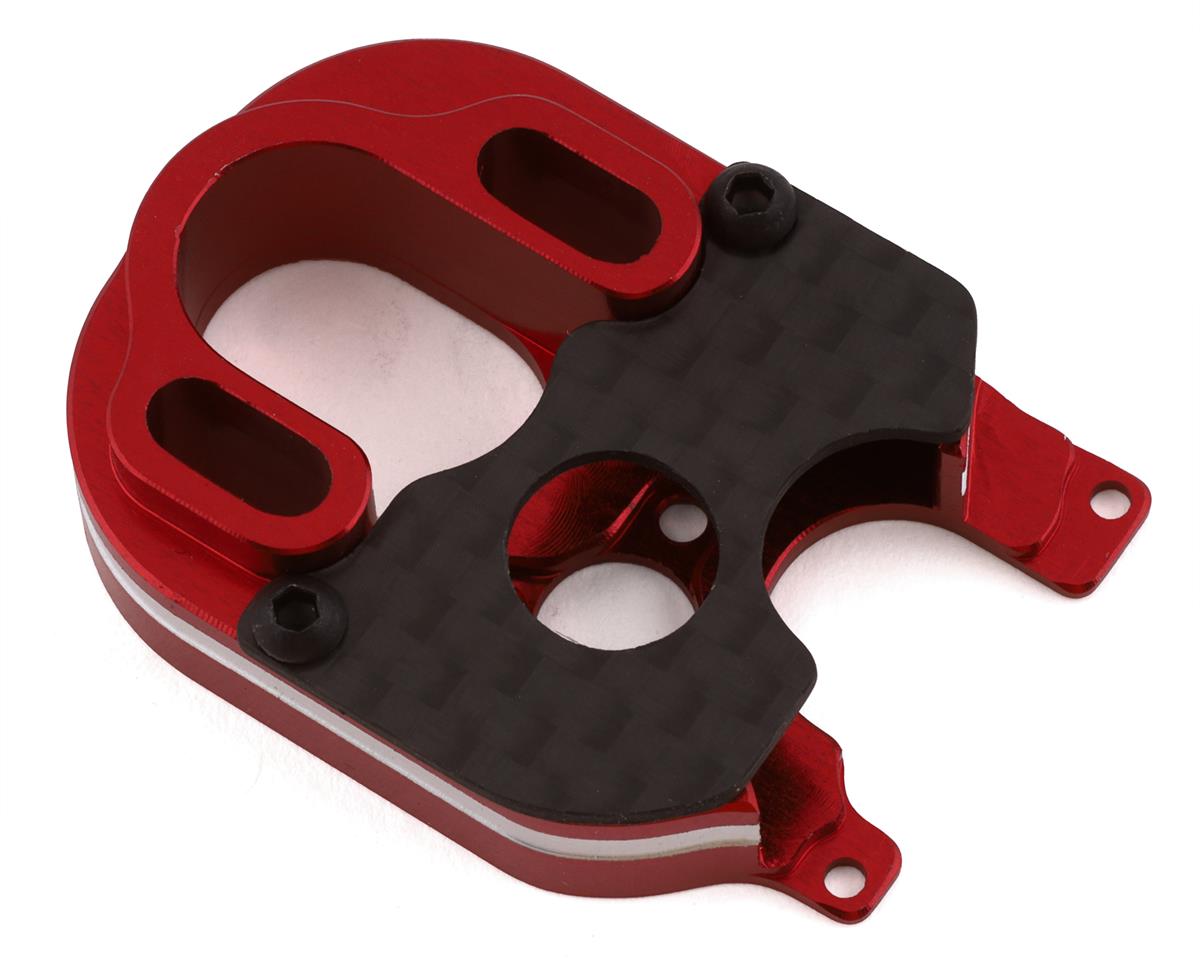

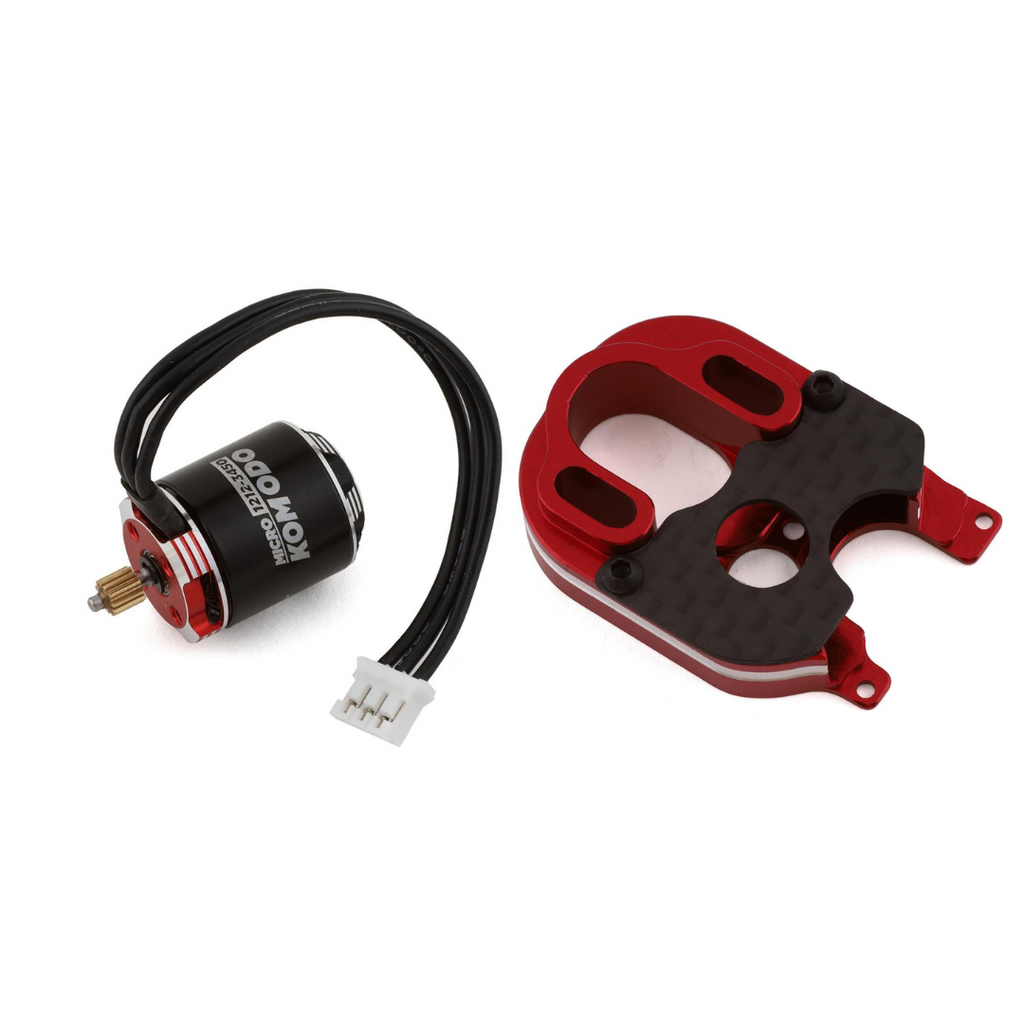

The Furitek Micro Komodo Brushless Motor is a high torque option for space conscious 1/24 scale builds. Don't let the size of this motor fool you. A 12-pole motor design with a precision balanced rotor allow for extremely low RPM while maintaining maximum torque and efficiency. Package includes one micro motor with pre-installed pinion. Furitek CNC Aluminum Motor Mount. This optional motor mount set is designed to fit the Axial SCX24 and will allow you to mount the Furitek Komodo series motor. Made from carbon fiber and aluminum for a super strong and clean finish. Package includes one motor mount with hardware.
Features:
- 12 Pole hi-torque motor design
- Super thin (0.2 mm) stator laminations
- Japanese NMB --High RPM ABEC5 bearings
- Precision balanced rotor for best reliability and maximum RPM
- CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion
- High purity and higher temperature single copper windings
- Excellent heat dissipation for maximum efficiency
Specifications:
kV(RPM/Motor): 3450
No-load current: 0.7A @ 10V
Watt: 120W
Battery: 2-3S
Resistance: 0.16Ohms
Max Current: 10A
Slot/Pole: 12
Motor size: 15.5x20.6mm
Shaft: 1.5x6mm
Weight: 17.5g
Weight: 17.5g
