Castle Creations Copperhead 10 1412-3200Kv 5mm Sensored Combo (SCT Edition)

NewSave 17%
CastleSKU: CSE010016613
No reviews

Price:
Sale price$ 224.00 Regular price$ 268.95
Stock:
Only 1 unit left

Pickup available at Chantilly Store

Usually ready in 1 hour

Description



SCT COMBO  APPLICATION MAX VEHICLE WEIGHT
 1412-3200Kv       2s-4s on 2WD/4WD SC Trucks         Vehicles weighing up to 6.5 lbs. ready-to-run

THERE'S A NEW PREDATOR IN TOWN.
Meet the COPPERHEAD 10 PERFORMANCE ESC. It takes to the open road as well as it takes to no road at all.  This completely new design rounds out our 1:10 scale offerings, positioned between the SIDEWINDER 4 as the entry-level upgrade and the MAMBA X as the extreme performance option. The COPPERHEAD 10 includes CRYO-DRIVE™ TECHNOLOGY, SENSORED MOTOR SUPPORT and DATA LOGGING LITE* with Castle’s signature reliability and performance.


Throughout its development the Copperhead has been put to the test in all types of elements and performed as aggressively, or as stealthy, as desired. Whether on the trail dominating the gates or throwing dust on the dirt track, the Copperhead is power hungry when you need it and oozes smooth low-end power for technical low RPM performance. If your rig is outfitted with high-power servos (or additional torque increasing modifications) there is no need to worry about brown-outs, glitching or slow actuating servos. The Copperhead provides clean and constant power with its user selectable (through Castle Link) 5.5V or 7.5V (6A peak) internal BEC.

The ESC can be installed and calibrated (plug and play) and provide immediate fuss-free wheel time. Through the interface-free manual programming mode, using your transmitter you can set your low-voltage cutoff, brake/reverse type, brake amount, drag brake, motor type and direction. Likewise, you can employ the use of the Castle Link Programming Suite on your Windows™ PC (coupon for free USB adapter included with purchase), or wirelessly with the convenience of the new B-Link™ Bluetooth™ Adapter and Castle Link app for Android or iOS.  Additional Castle Link benefits include access to all firmware updates and added features sets released from Castle Engineering (at no charge), the ability to download and analyze your collected Data Log , an Intuitive Demo Mode capability as well as the option to save setup profiles (for multiple vehicles) for later use.

For crawler setups or others that do not require an ESC cooling fan, the fan is easily removed with four screws and the fan guard with the cool COPPERHEAD logo simply clicks back into place on the top of the ESC. It keeps the COPPERHEAD 10 looking mean and provides an extra measure of protection.  To further protect your investment, the COPPERHEAD emits audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff. You'll find a handy decal in your box that contains a reference chart for the eight alert tones, no need to Google while your enjoying your wheel time!

We’ve packaged the COPPERHEAD 10 with a dozen different 4-POLE 12-SLOT sensored motor options to eliminate the guesswork in finding the right brushless power upgrade for your basher, crawler, on road vehicle, short course or monster truck. An added bonus of pairing your Copperhead with a Castle 4-Pole 12-Slot sensored motor is enabling SMARTSENSE™ TECHNOLOGY, which uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle’s ultra-efficient sensorless mode with electronic timing to advance timing automatically for peak performance in all driving conditions.

The all-new COPPERHEAD 10 PERFORMANCE 1:10 SCALE ESC is ideal for those who want sensored motor support, data logging, a 6A peak selectable internal BEC (5.5V or 7.5V) and Castle’s signature reliability and performance in the meanest looking ESC around! If you’re looking to transform your 1:10 scale stock vehicle from dull to dangerously fun COPPERHEAD can do it with its buttery smooth starts, CRYO-DRIVE enabled performance and up to 4S power in a compact, easy-to-install footprint.

COPPERHEAD 10 FEATURES:






  • Input Voltage Range for 1412-3200Kv Combo : 2s-4s LiPo
  • SMARTSENSE™, SENSORED ONLY and BRUSHED Running Modes
  • Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
  • ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
  • 30mm removable fan and DUAL USE FAN GUARD
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
  • Convenient TRANSMITTER PROGRAMMING for six common adjustable settings inlcuding cutoff voltage and drag brake.
  • DATA LOGGING LITEcaptures and records performance data from your vehicle to maximize performance and battery life. (Battery Voltage Battery Ripple, Controller temp, Motor RPM, Motor Temp)
  • SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle’s ultra-efficient sensorless mode.
  • CASTLE LINK USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK™ BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
  • PROUDLY DESIGNED, ASSEMBLED AND SUPPORTED IN KANSAS, USA.
  • Backed by Castle Creations' 1-YEAR WARRANTY

*Data Logging capabilities require the use of Castle Link Programming Suite using a Windows™ PC and freely downloadable software.

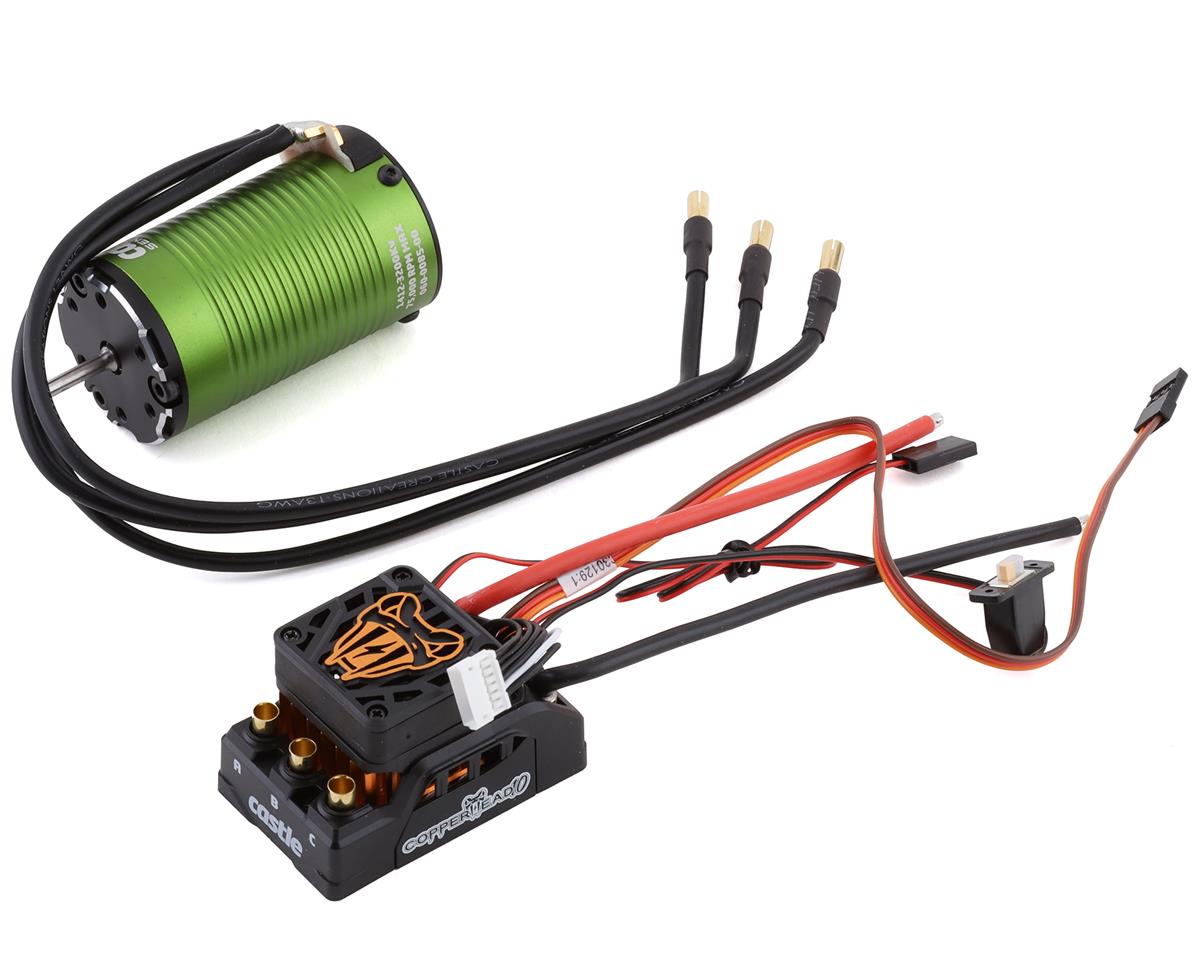

COPPERHEAD 10 1412-3200KV COMBO COMES WITH:


  • Copperhead 10 ESC

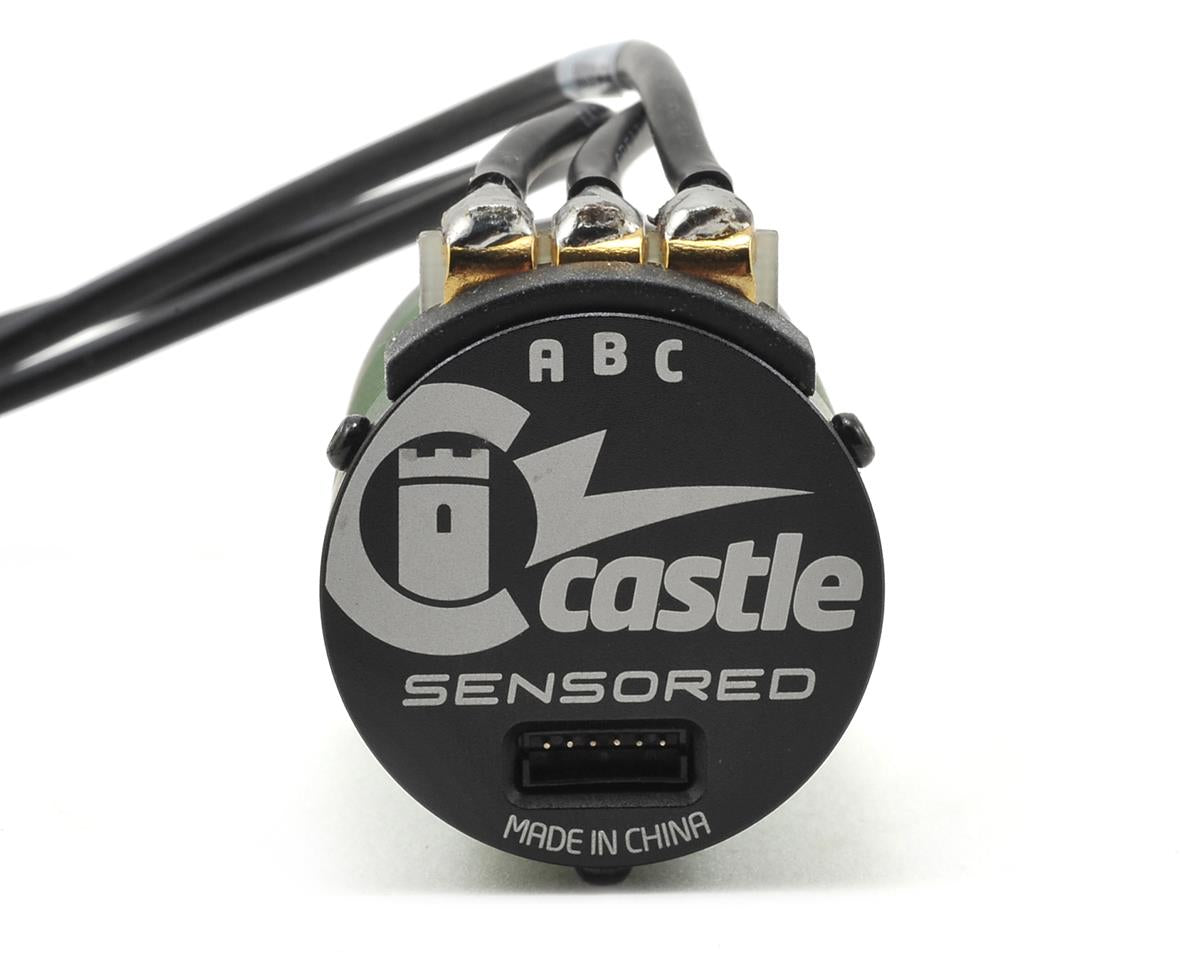

  • 1412-3200KV Sensored Motor
  • Copperhead Ddecals and Audible Alert Reference Chart
  • Coupon for free Castle Link USB
  • Copperhead Quick Start Guide
  • Sensor port dust cover
