Description

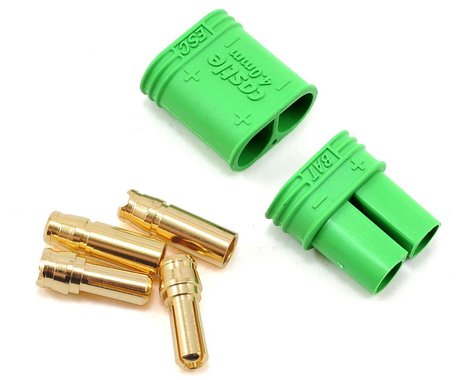

This is the Castle Creations 4mm Polarized Bullet Connector Set. Polarized connectors have a place in the hearts of many modelers as they make it impossible to destroy their expensive electronics and batteries by plugging them in backwards. However, they have been lacking a connector capable of extremely high currents, constantly having to increase their voltage to maintain amperage levels. But what do you do when you’re maxed out on voltage and your setup requires more amperage than battery connectors on the market will handle? What if you don’t want to or can’t increase your voltage due to size constraints or competition rules? The answer is simple, you go green. The Castle Creations polarized connectors will handle up to 200 amps of continuous current (for the 6.5mm version; 75 amps for the 4.0mm connectors) without breaking a sweat at any voltage level used in R/C applications.
These are the highest rated polarized connector on the market. Not only that, but they’re user friendly too! Castle Creations has added ridges to the housing making them easier to grip, they accept up to massive 6 AWG wire, and they're marked "Battery" and "ESC" for easy reference. Batteries and ESCs aren’t the only things they’re useful for though. Use them on your charger leads, parallel and series harnesses, high current amp/watt meters, and anything else that needs super high current. They’re what "going green" should REALLY mean!
Specifications:
Weight: 7.1g (0.25oz)
Connector Size: 4.0mm gold connector
Max Wire Gauge: 13 AWG
Amperage Capability: 75A Continuous
Dimensions (WxLxD):
- Male: 0.67x0.71x0.36 inches (17.1x18x9.2mm)
- Female: 0.67x0.72x0.36 inches (17.1x18.4x9.2mm)
- Combined: 0.67x1.0x0.36 inches (17.1x25.5x9.2mm)
