Axial AR44 Locked Axle Set Front Rear Complete

This is the Axial AR44 Complete Locked Axle Set for Front or Rear Application on the Axial SCX10 II. This set allows you to build one front or one rear AR44 axle. Axail included UVJ axles if you choose to build a front axle, and straight axle shafts if you choose to build a rear. If you plan on building both a front and rear axle, you’ll be better off purchasing two of these kits and using the remaining parts as spares. You can buy individual parts, however, buying these sets are more economical.

Features:

• High pinion gears for added ground clearance & better driveshaft angles
• The high pinion design allows increased gear surface contact for increased durability
• Larger load bearings used around the gear set to reduce flex and create a stronger drivetrain
• Single piece axle housing for added strength
• 1-piece all-metal locker
• Small pumpkin for increased clearance and a more realistic, scale look
• Bolt on link mounts
• Knuckle carriers and straight axle adapters have a better mounting system with 10-degree increment adjustments
• Optimized gear ratio – 3.75 compared to 2.92 previously. This reduces torque twist which is typically seen with other small pumpkin axle designs

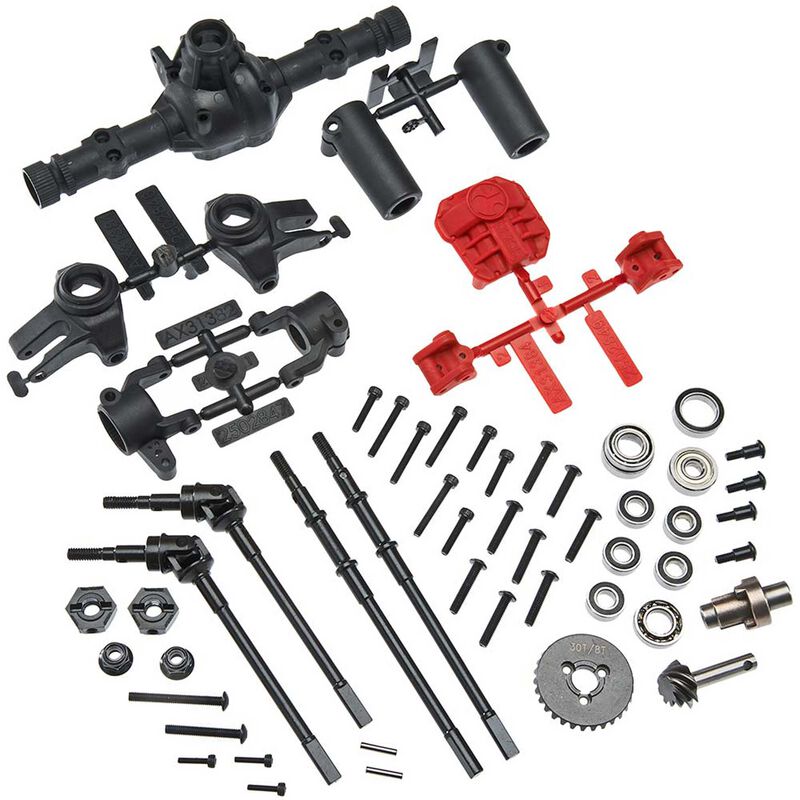

Includes:

• (2) Pin 2.0x10mm

• (2) 12mm Aluminum Hub (2)
• (3) M2x8mm Cap Head (3)
• (2) M4 Nylon Lock Nut (2)
• (2) M3x3 Set Screw (2)
• (6) M3x15mm Button Head (6)
• (1) M3x20mm Button Head (1)
• (1) M3x25mm Button Head (1)
• (5) Bearing 5x11x4mm (5)
• (2) Bearing 10x15x4mm (2)
• (1) AR44 Steering Knuckles (1)
• (1) AR44 Knuckle Carrier (1)
• (1) AR44 Straight Axle adapters (1)
• (1) AR44 Diff Cover/Link Mounts (1)
• (4) M2.6x12mm Caphead - Hex Socket (4)
• (4) M2.6x18mm Caphead - Hex Socket (4)
• (1) AR44 Axle Housing (1)
• (2) AR44 UVJ Axle Assembly (2)
• (4) Shoulder Screw M3x4.5x10mm (4)
• (1) Axle Locker (1)
• (1) 30T Ring Gear (1)
• (1) 8T Pinion Gear (1)
• (2) Bearing 7x14x3.5mm (2)
• (1) Bearing 5x14x5mm (1)
• (2) AR44 Rear Axle Shaft (2)
