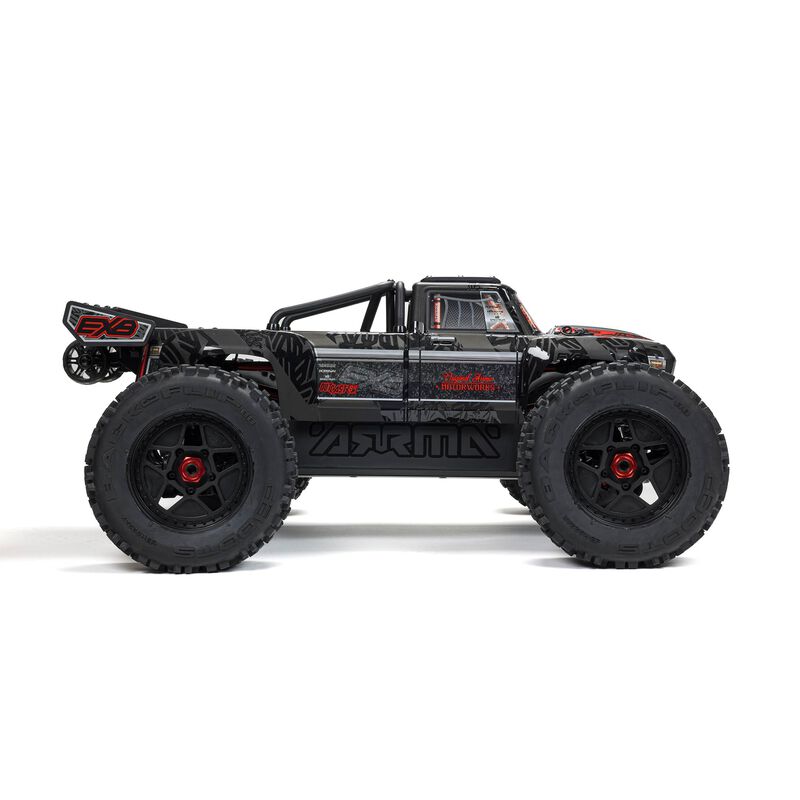

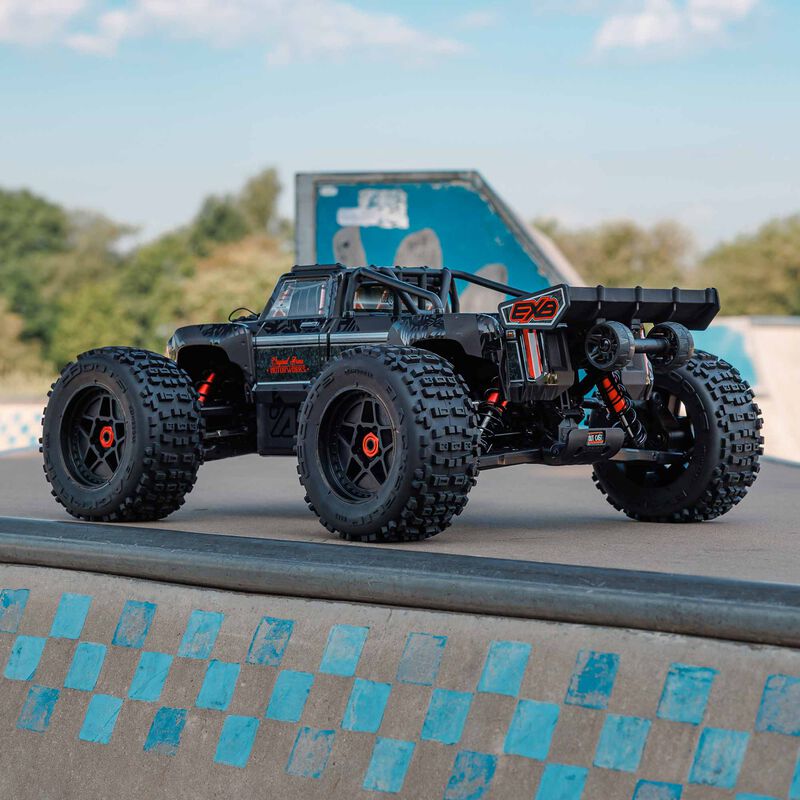

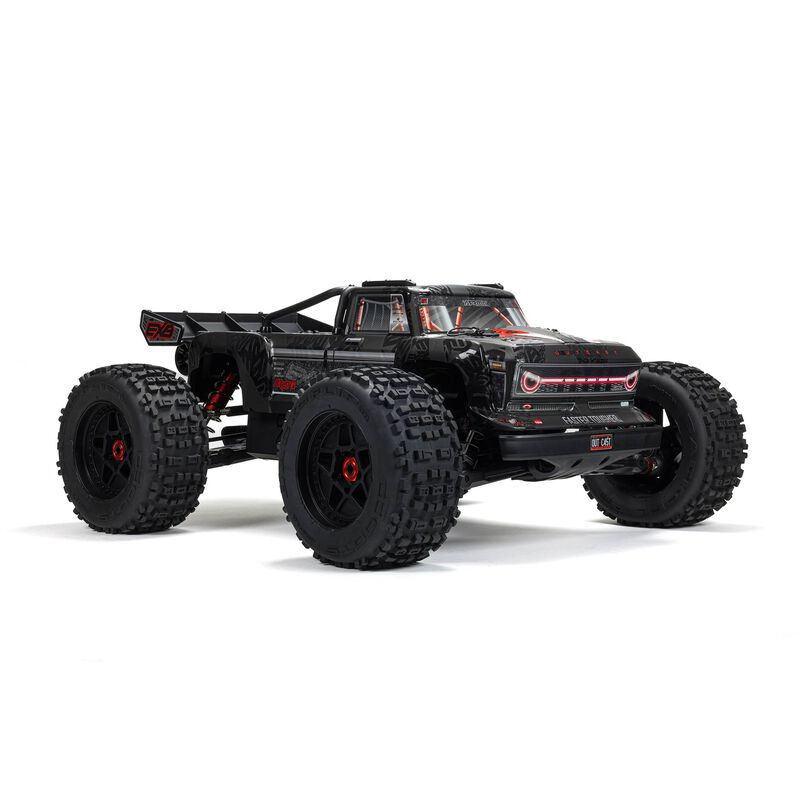

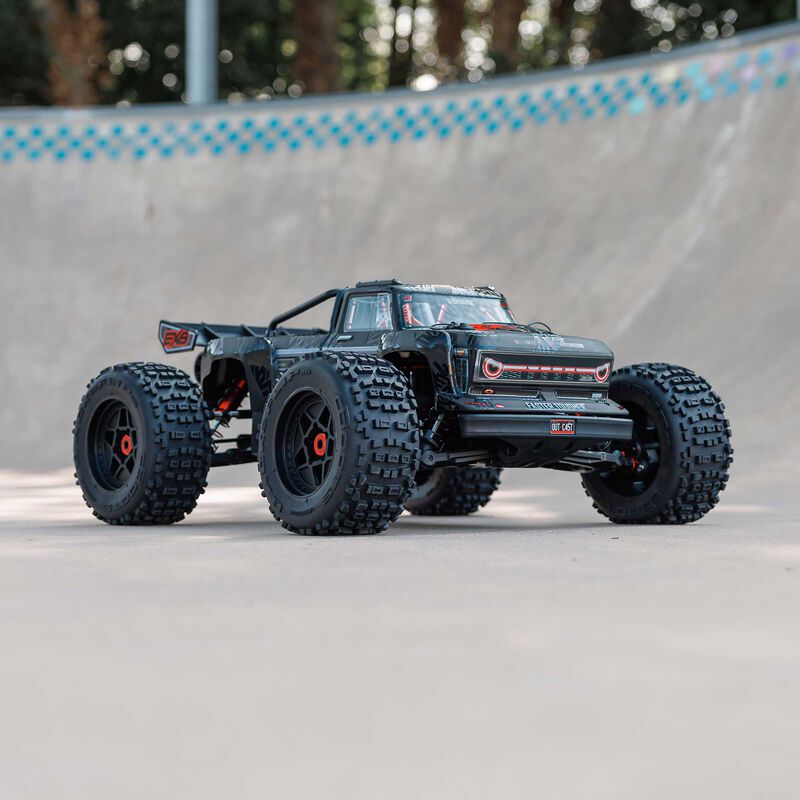

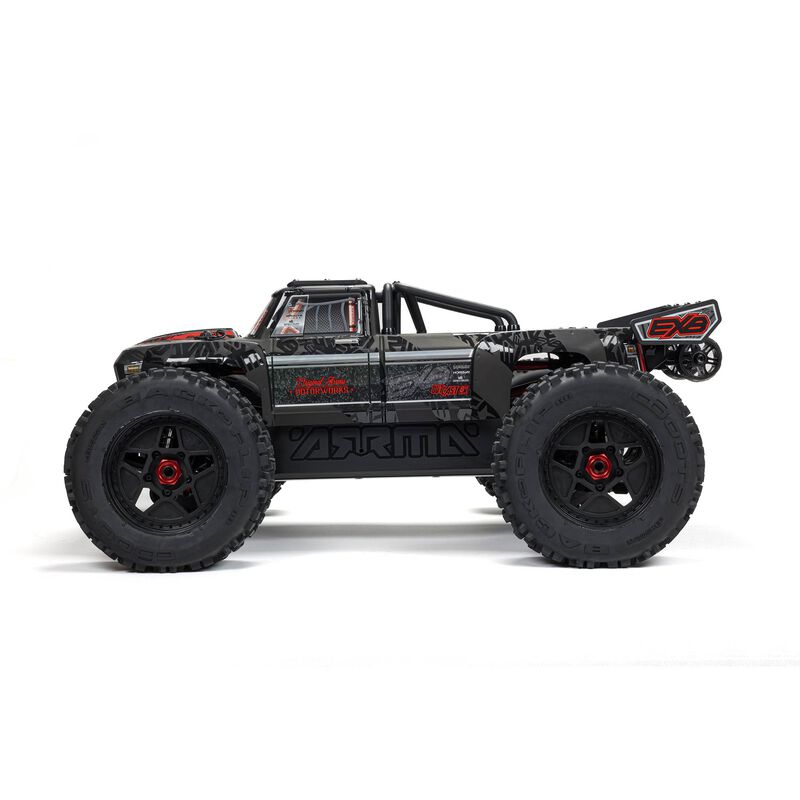

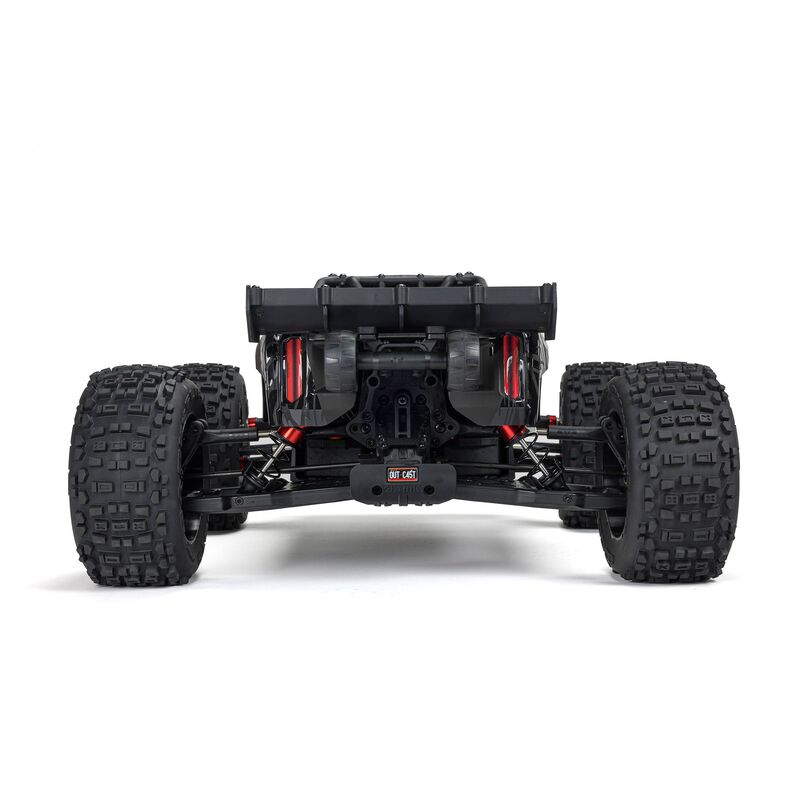

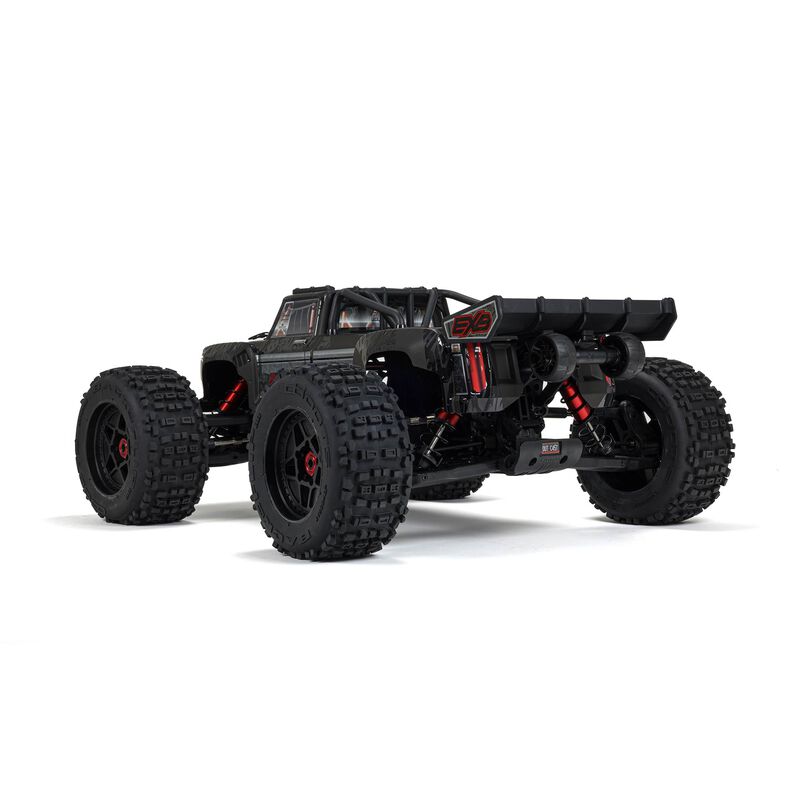

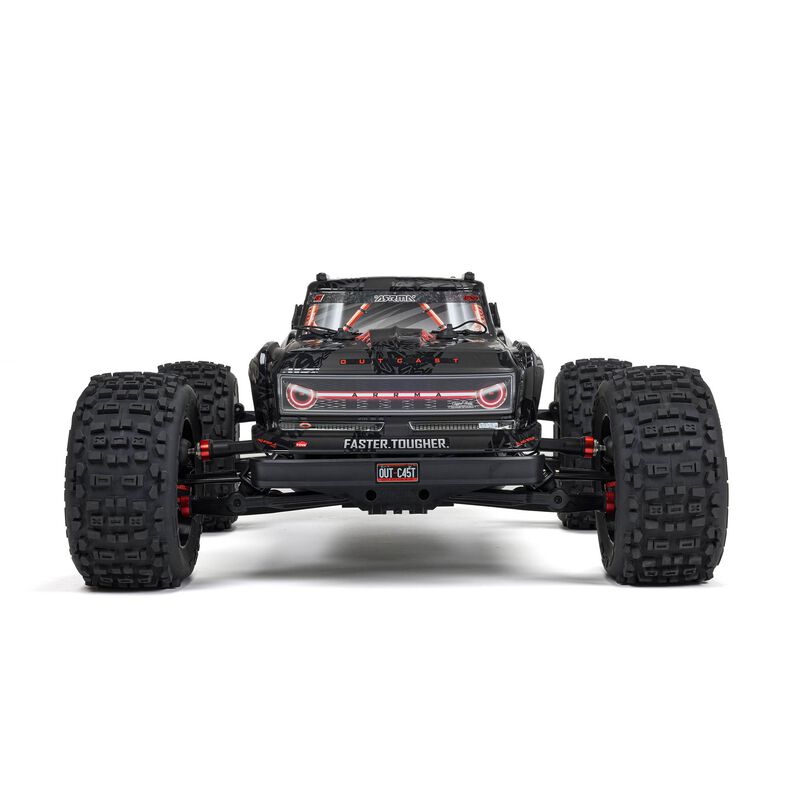

Arrma 1/5 OUTCAST 4X4 8S BLX EXB Brushless Stunt Truck RTR

ArrmaSKU: ARA5810V2T1
No reviews

Color: Black
Price:
Sale price$ 999.99
Stock:
Sold out

Pickup currently unavailable at Chantilly Store

Description

THIS IS A OPEN BOX NEVER USED PRODUCT



The ultimate 1/5 scale platform for bashing and performing stunts now includes the extreme strength of EXB parts, a beefed-up Spektrum 8S LiPo-capable brushless system, and much more — in a convenient, ready-to-run package that's loaded with value.

  • The ultimate ARRMA® 1/5 scale ready-to-run Stunt Truck
  • Engineered tough with EXtreme Bash 7075-T6 aluminum parts
  • Bigger, tougher shocks, linkages, turnbuckles, and more
  • Aggressive new EXB matte-and-gloss color scheme
  • Updated, extreme 8S LiPo capable Spektrum™ brushless power system
In The Box
  • (1) 1/5 OUTCAST™ 8S EXtreme Bash Stunt Truck 4X4 RTR
  • (1) Spektrum™ S6510 steel gear waterproof servo
  • (1) Spektrum™ FIRMA™ 1100Kv brushless motor
  • (1) Spektrum™ FIRMA™ 160A V2 Smart ESC
  • (1) Spektrum™ DX3™ 3-channel 2.4GHz DSMR radio with SR6200A DSMR receiver
  • (1) CNC machined aluminum 24mm wheel wrench
  • (1) 1/5 OUTCAST™ 8S EXtreme Bash Stunt Truck Product Manual
Needed to Complete
  • (2) 3S or (2) 4S LiPo Batteries with EC5™ or IC5™ connector
  • (1) Compatible Battery Charger
  • (4) AA batteries for Transmitter



Features

  • The ultimate ARRMA® 1/5 scale RTR Stunt Truck
  • Engineered tough with EXtreme Bash 7075-T6 aluminum parts
  • Bigger, tougher shocks, linkages, turnbuckles, and more
  • Aggressive new EXB matte-and-gloss color scheme
  • Updated 8S LiPo capable Spektrum brushless power system
  • EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
  • EXB Red-anodized CNC aluminum front brace mount
  • Spektrum FIRMA 1100Kv brushless motor with 10% more torque
  • Spektrum S6510 steel gear waterproof servo with 47% more torque
  • Spektrum DX3 3-channel 2.4GHz DSMR radio
  • Spektrum SR6200A DSMR receiver with AVC®
  • Updated Spektrum FIRMA 160A V2 Smart ESC for more punch and better driving feel
  • New big block dBoots® Back-Flip BB tires

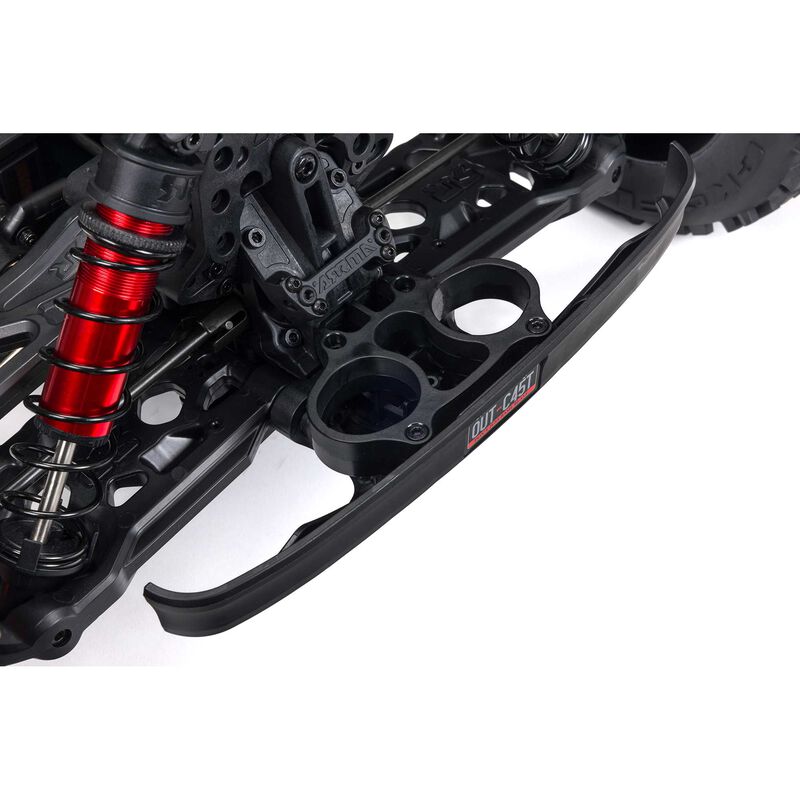

  • Front bumper with impact-absorbing design
  • Easy-access 3-bolt sliding motor mount
  • Heavy-duty drivetrain
  • Easy-access front and rear diff module design
  • All-metal diff outdrives and gearbox internals
  • Durable steel driveshafts
  • Durable wheel hubs
  • Easy-access waterproof electronics module
  • Center body support and brace for maximum durability
  • Strong composite chassis side pods

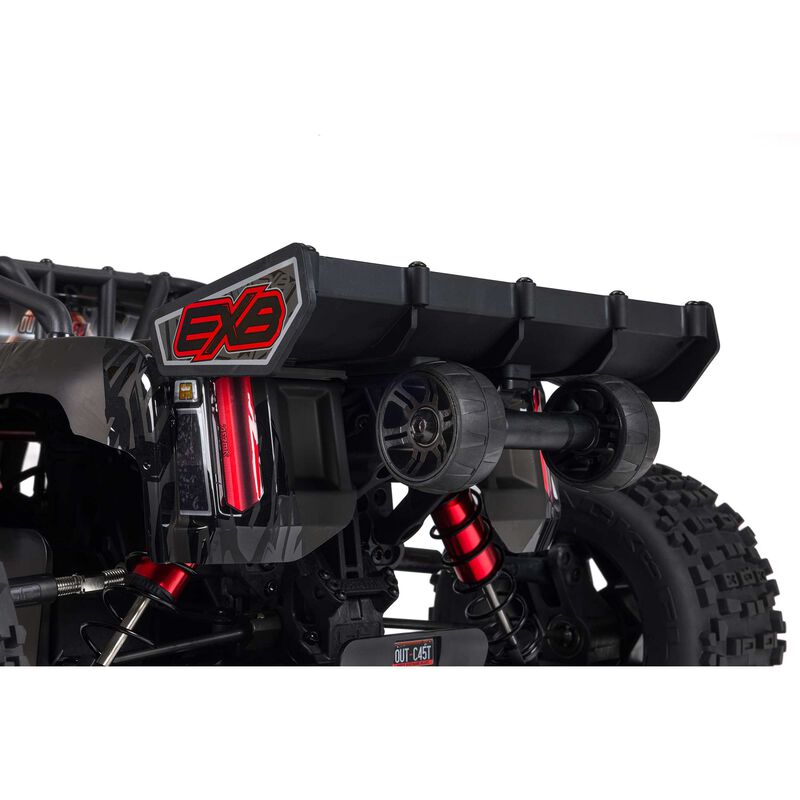

  • Wheelie bar
  • High-quality CNC machined aluminum 24mm wheel wrench included
  • 2-Year limited warranty (see website support for details)

Overview

For stunt and bashing performance at its biggest and best, the ARRMA® OUTCAST 1/5 8S Stunt Truck has no equal. In this new ready-to-run version, it's better than ever before! Not only is the OUTCAST 1/5 8S EXB Stunt Truck RTR loaded with EXtreme Bash parts for even greater durability, but it also arrives with higher-powered Spektrum 8S LiPo-capable brushless electronics already installed — all at an astonishingly affordable price.

Punchy and powerful, the new Spektrum 8S-capable brushless system features a massive 5687 FIRMA 1100Kv brushless motor with a huge 56mm diameter and 10% more torque than the previous OUTCAST 8S RTR. The new motor is paired with a Spektrum S6510 steel gear servo that puts out 820 oz-in of torque at 8.4V — nearly 50% more muscle than its predecessor. The new RTR package also includes a Spektrum FIRMA 160A V2 Smart ESC and Spektrum DX3 3-channel 2.4GHz DSMR radio system, with Spektrum AVC technology built-in to keep the huge power under control.

The toughness engineered into the ARRMA® OUTCAST 1/5 8S EXtreme Bash Stunt Truck must be bashed to be believed. A huge number of EXB-hardened parts and options give it virtually unstoppable strength straight out of the box. They include a 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and EXB front bumper with impact absorbing design. Topping it all off is an aggressive truck body with a bold new EXB matte-and-gloss paint scheme, for a look unlike any other vehicle. No "Candy Crush" designs here — the OUTCAST EXB is built to be as purposeful as it looks!

Adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts and ultra-thick composite towers soak up bumps. The ARRMA® OUTCAST 1/5 8S EXtreme Bash Stunt Truck RTR blasts over all kinds of surfaces, from asphalt to dirt and grass. Big dBoots® BACK FLIP 2 big block tires on multi-spoke wheels add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling for whatever eye-popping stunts you can imagine.

A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme action.

Of course, the popular, easy-access ARRMA® modular design lowers your maintenance downtime to the minimum — so you can keep on enjoying the surprisingly affordable high-end performance without interruption. Ultimately, the OUTCAST 1/5 8S EXtreme Bash Stunt Truck is more than a massive and powerful bashing machine. It's the biggest and best ARRMA® ready-to-run basher to date!

Video Overview




ARA5810V2T1 Header Image

EXB (EXtreme Bash) Components
EXB (EXtreme Bash) Components

EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® OUTCAST 8S EXtreme Bash Stunt Truck RTR virtually unstoppable strength.



Steel Turnbuckles
Steel Turnbuckles

Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale OUTCAST EXB to withstand extreme off-road bashing.v

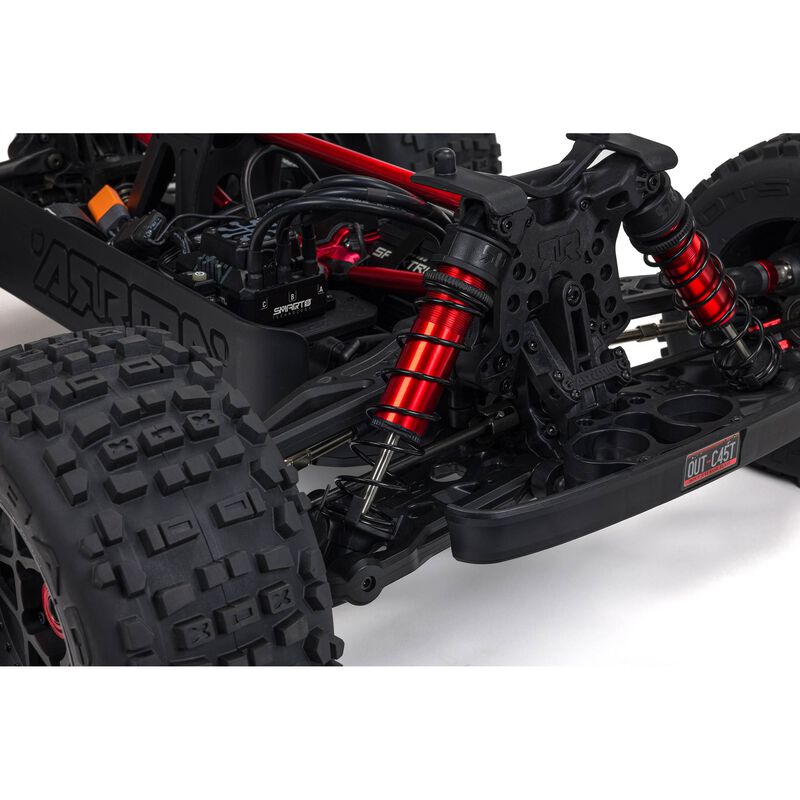

Oil-Filled Shocks
Oil-Filled Shocks

Mounted on ultra-thick composite front and rear towers and featuring plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps.



High-Traction dBoots<sup>®</sup> Tires
High-Traction dBoots® Tires

Long-lasting new Big Block dBoots® Back-Flip BB tires on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.



Quick Motor Access
Quick Motor Access

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.

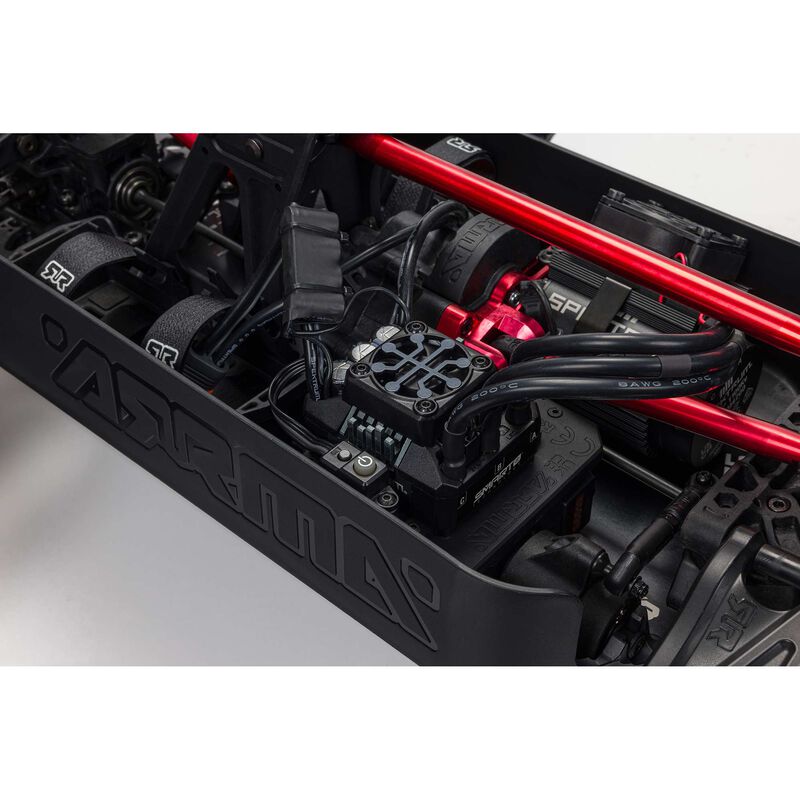

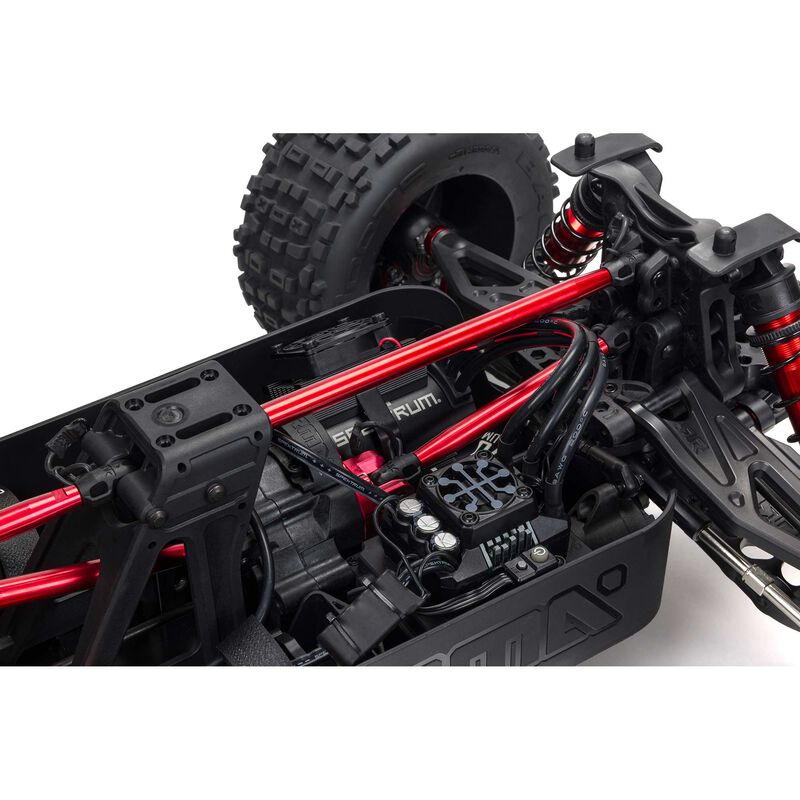

Electronics Module
Electronics Module

The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.

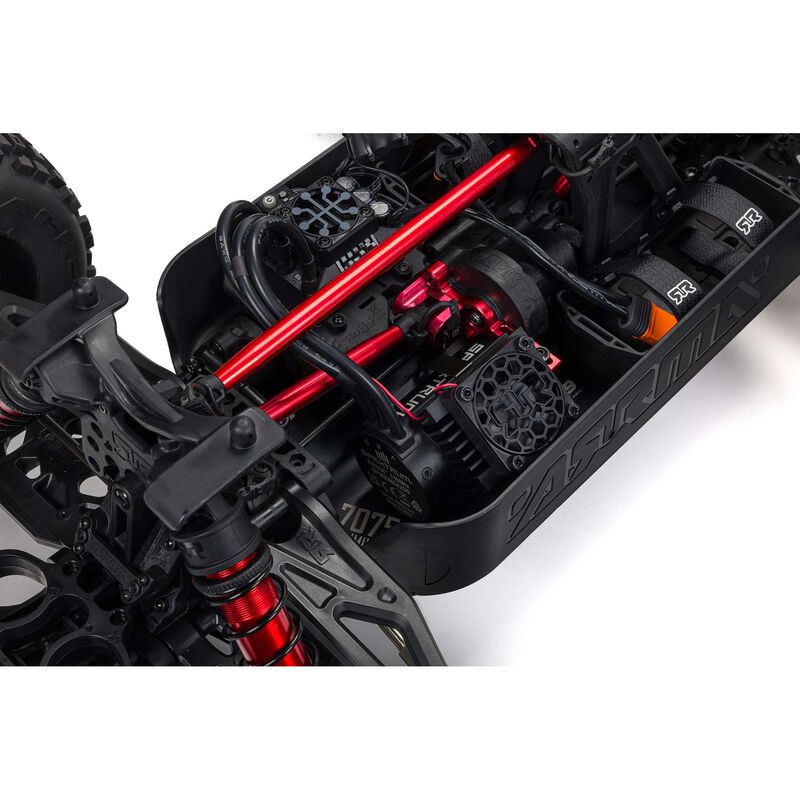

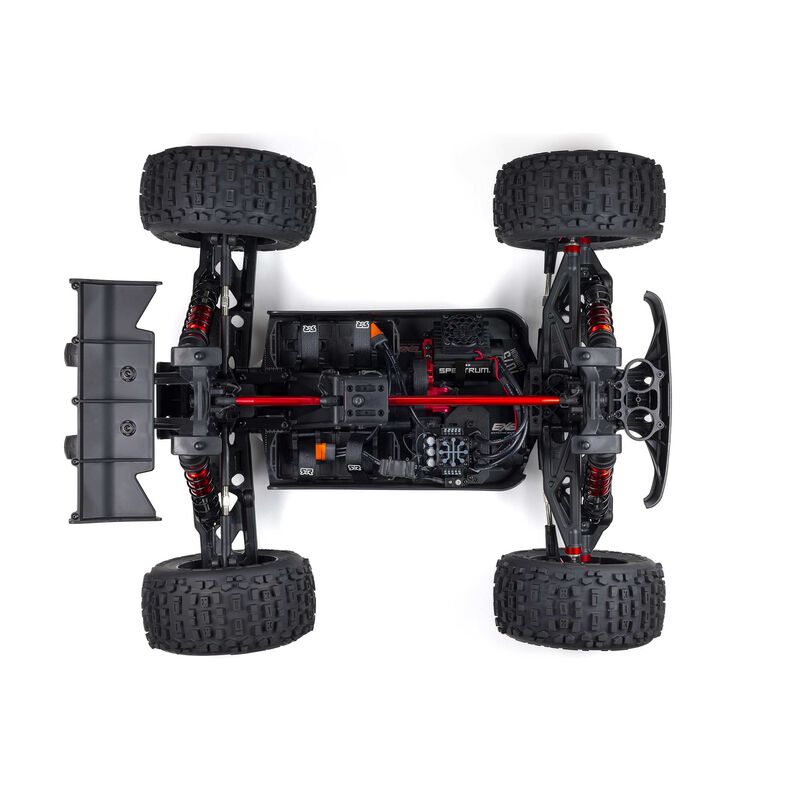

Multi-Structured Center Brace System
Multi-Structured Center Brace System

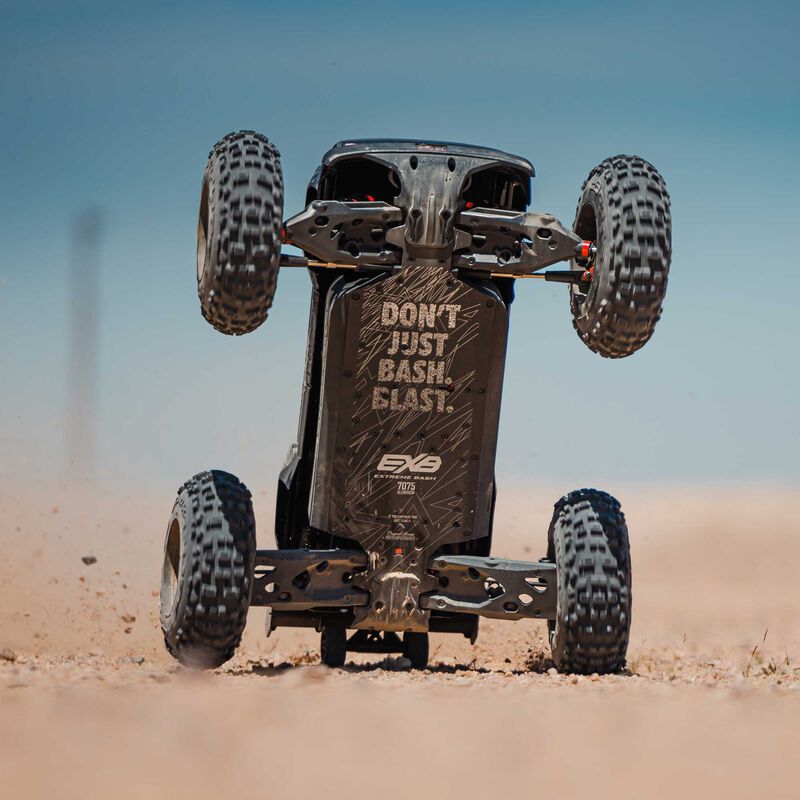

Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a center body support and brace for maximum durability.



Durable Metal Construction
Durable Metal Construction

Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXB-toughened suspension system smooths the ride.




Smart Technology
Smart Technology

The included Spektrum DX3 Smart transmitter and SRS6110AT AVC® (Active Vehicle Control®) receiver let you take full advantage of the Spektrum Smart Firma brushless motor and ESC's innovative telemetry capabilities. Download the free Spektrum Dashboard App to your mobile device and follow motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio's AVC® system to carve corners and nail jumps without letting up on the throttle.





ARA5810V2T1 Footer Image

Product Specifications

Battery Sold Separately
Connector Type IC5
Ground Clearance 2.56 in (65mm)
Internal Gear Ratio 9.06
Ball Bearings Complete
Chassis 5mm Plate, 7075-T6 Aluminum
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 12.01" (305 mm)
Power Type Electric
Gear Pitch 1.0 MOD
Motor Size 5687-1100Kv 4 Pole
Product Length 28.11" (714 mm)
Spur Gear 47T
Suspension Independent
Charger Sold Separately
Differential 3 Gear Diffs
Receiver Included
Shock Type Oil-Filled, Coil-Over Springs
Top Speed 50+
Wheel Hex Size 24mm
Motor Type Brushless
Speed Control Included
Wheelbase 16.93" (430 mm)
Body Painted, decalled and trimmed
Brakes Integral with ESC
Scale 1/5
Tire Tread dBoots BACK-FLIP
Vehicle Type Monster Truck
Water-Resistant Yes
Power System 8S
Product Width 23.43" (595 mm)
Radio Included
Technology AVC and SMART
Servos Included
